  13. Non-Illuminated Selector Switch, 4P, IP68

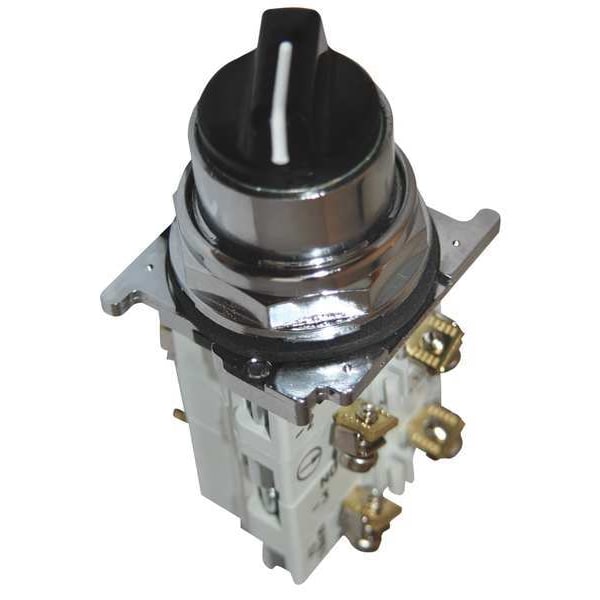

Eaton Non-Illuminated Selector Switch, 4P, IP68 10250T46KB - main

Non-Illuminated Selector Switch, 4P, IP68

  • Mfr # 10250T46KB

  • Zoro # G5226347

product price: $253.99
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Metal
Type of Operator
Knob
Contact Form
2NO/2NC
Action
Maintained/Maintained/Maintained/Maintained
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250T46KB
Zoro #
G5226347
UPC #
786680123450
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Width
2.2 in
Product Height
4.7 in
Product Length/Depth
2.6 in
Manufacturer Warranty Length
1 yr
Overall Width
2.2 in
Overall Depth
2.6 in
Panel Cutout Diameter
30 mm
Overall Height
4.7 in

Details

Item
Selector Switch
Basic Material
Metal
Type of Operator
Knob
Contact Form
2NO/2NC
Action
Maintained/Maintained/Maintained/Maintained
Operator Head Material
Polymer
Cam
3
Color
Black
NEMA Rating
12, 13, 3, 3R, 4, 4X
Position
4
Bezel Material
Zinc
Key Removal
No Key
Bezel Color
Black
NEMA Contact Rating Designation
A600/P600
Switch Operation @ Position D
OOOX
Switch Operation @ Position A
XOOO
Switch Operation @ Position B
OXOO
Includes
Assembled Pushbutton
IP Rating
IP68
Contact Rating
10A @ 600V AC
Standards
CE, CSA, UL Listed
Switch Operation @ Position C
OOXO
DC Contact Rating
5 A @ 250 V
Series
10250T
AC Contact Rating
10 A @ 600 V
Certifications
CSA Certified
Throw type
40°
Compliances
CE Marked
Illumination
Non-illuminated
Number Of Positions
4
Actuator
Knob
Contact configuration
2 NO-2 NC
Rating
NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Type
30.5 mm, Heavy-Duty
Actuator color
Black
Product Name
Eaton 10250T pushbutton
Operator Illumination
Non-Illuminated
Switch Function @ 3rd Position
On
Operator Head Color
Black
Contact Block Material
Metal
Switch Function @ 4th Position
On
Hazardous Location Specification
Not Rated
Switch Function @ 1st Position
On
Switch Function @ 2nd Position
On
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Operator Head Type
Short-Handled Knob
Number of Positions
4

Description

Selector Switch, 30 mm, 4 Position, Maintained/Maintained/Maintained/Maintained Action, 2NO/2NC Contact Form, Type of Operator Knob, Color Black, No Key Key Removal, Operator Head Material Polymer, Basic Material Metal, Bezel Material Zinc, Bezel Color Black, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP68, Cam 3, Switch Operation @ Position A XOOO, Switch Operation @ Position B OXOO, Switch Operation @ Position C OOXO
