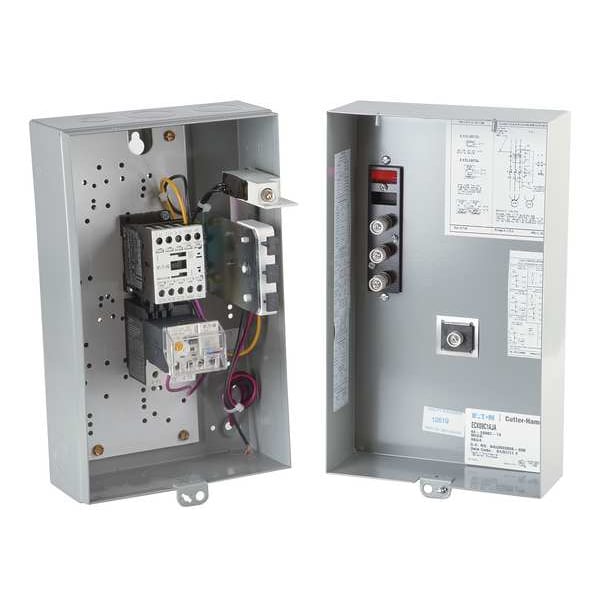

Nonreversing IEC Magnetic Motor Starter, 1 NEMA Rating, 120V AC, 3 Poles, 1NO/1NC

  • Mfr # ECX09C1AAA-R63/A
  • Zoro # G3119697
product price:
$
427.99
/ea
Free Shipping & Returns

Key Features

Overload Relay Amp Setting
0.3 to 1.6
Enclosure NEMA Rating
1
Auxiliary Contact Form
1NO/1NC
HP @ 3 Phase - 240V
3 hp
HP @ 3 Phase - 480V
1/2 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ECX09C1AAA-R63/A
Zoro #
G3119697
UPC #
-
Country of Origin
United States
Item
IEC Magnetic Motor Starter
Overload Relay Amp Setting
0.3 to 1.6
Coil Volts
120V AC
Enclosure NEMA Rating
1
Auxiliary Contact Form
1NO/1NC
HP @ 3 Phase - 240V
3 hp
HP @ 3 Phase - 480V
1/2 hp
HP @ 3 Phase - 575V
3/4 hp
HP @ 3 Phase - 208V
2 hp
HP @ 1 Phase - 120V
1/2 hp
HP @ 1 Phase - 240V
1 1/2 hp
Action
Nonreversing
Number of Poles
3
Amps AC
9.0 A
Standards
cUL Listed, UL Listed
Hz
50/60 Hz
Type
Non-combination non-reversing starter
Amperage Rating
9A
Rating
IP23
Enclosure
NEMA 1
Coil Voltage
120V AC
Enclosure Material
Painted steel
Overload Relay
0.33-1.65A electronic overload
Overload Protection Type
Electronic
Series
XT
Includes Auxiliary Contacts
Yes
Maximum Overload Relay Current Setting
1.65 A
Reversing Capability
Non-Reversing
Horsepower @ Three Phase - 240V AC
3 hp
Frequency
50/60 Hz
NEMA Enclosure Rating
1
Current AC
9 A
IP Rating
IP23
Auxiliary Contact Module Capacity
4
Mounting Style
Surface
Number of Auxillary Contacts
2
Minimum Overload Relay Current Setting
0.33 A
Horsepower @ Single Phase - 240V AC
1 1/2 hp
Starter Style
IEC
Maximum Voltage Rating
690V AC
Phase
Three
Horsepower @ Three Phase - 600V AC
3/4 hp
Trip Class
10A/10/20/30
Horsepower @ Three Phase - 480V AC
1/2 hp
Horsepower @ Single Phase - 120V AC
1/2 hp
Horsepower @ Three Phase - 208V AC
2 hp

Dimensions

Height
8.5 in
Depth
10.1 in
Width
14.9 in
Length
14 IN
Size
9A max starter
Overall Width
9 in
Overall Height
8.5 in
Overall Depth
14 in

Description

IEC Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 1.65 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 0.33 A, Trip Class 10A/10/20/30, Series XT, Number of Poles 3, Number of Auxillary Contacts 2, Phase Three, Mounting Style Surface, Auxiliary Contact Form 1NO/1NC, Starter Style IEC, Reversing Capability Non-Reversing, Maximum Voltage Rating 690V AC, Coil Voltage 120V AC, Horsepower @ Three Phase - 600V AC 3/4 hp
