Shop EATON

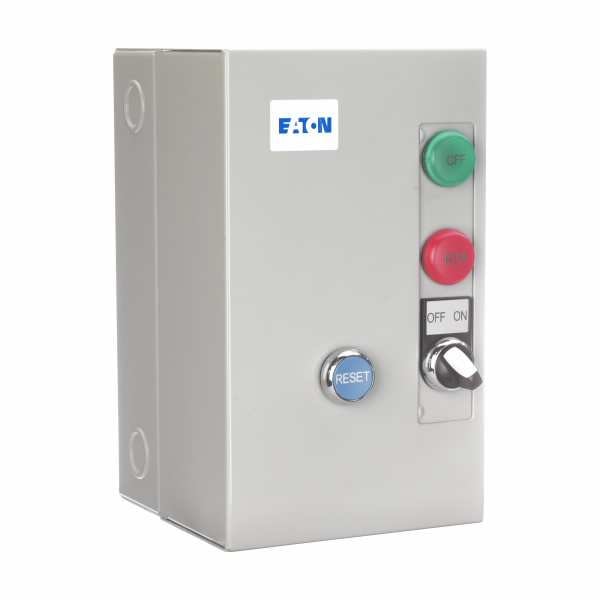

Nonreversing IEC Magnetic Motor Starter, 1 NEMA Rating, 120V AC, 3 Poles, 1NO/1NC

  • Mfr # ECX09C1AAA-R63/C
  • Zoro # G2510593

product price:
$
460.99
/ea
Free Shipping & Returns

Key Features

Overload Relay Amp Setting
4.0 to 20.0
Enclosure NEMA Rating
1
Auxiliary Contact Form
1NO/1NC
HP @ 3 Phase - 240V
2 hp
HP @ 3 Phase - 480V
5 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ECX09C1AAA-R63/C
Zoro #
G2510593
UPC #
-
Country of Origin
Mexico
Item
IEC Magnetic Motor Starter
Overload Relay Amp Setting
4.0 to 20.0
Coil Volts
120V AC
Enclosure NEMA Rating
1
Auxiliary Contact Form
1NO/1NC
HP @ 3 Phase - 240V
2 hp
HP @ 3 Phase - 480V
5 hp
HP @ 3 Phase - 575V
7 1/2 hp
HP @ 3 Phase - 208V
2 hp
HP @ 1 Phase - 120V
1 hp
HP @ 1 Phase - 240V
1 hp
Action
Nonreversing
Number of Poles
3
Amps AC
9.0 A
Standards
cUL Listed, UL Listed
Hz
50/60 Hz
Horsepower @ Three Phase - 480V AC
5 hp
Horsepower @ Single Phase - 120V AC
1/2 hp
Includes Auxiliary Contacts
Yes
Phase
Three
Coil Voltage
120V AC
Current AC
9 A
Auxiliary Contact Module Capacity
4
Number of Auxillary Contacts
2
Horsepower @ Three Phase - 208V AC
2 hp
Trip Class
10A/10/20/30
Minimum Overload Relay Current Setting
4 A
IP Rating
IP23
Horsepower @ Single Phase - 240V AC
1 1/2 hp
NEMA Enclosure Rating
1
Maximum Overload Relay Current Setting
20 A
Reversing Capability
Non-Reversing
Starter Style
IEC
Mounting Style
Surface
Frequency
50/60 Hz
Horsepower @ Three Phase - 600V AC
7 1/2 hp
Maximum Voltage Rating
690V AC
Overload Protection Type
Electronic
Horsepower @ Three Phase - 240V AC
2 hp
Series
XT

Dimensions

Width
14.9 in
Height
8.5 in
Depth
10.1 in
Overall Width
9 in
Overall Height
8.5 in
Overall Depth
14 in

Description

IEC Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 20 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 4 A, Trip Class 10A/10/20/30, Series XT, Number of Poles 3, Number of Auxillary Contacts 2, Phase Three, Mounting Style Surface, Auxiliary Contact Form 1NO/1NC, Starter Style IEC, Reversing Capability Non-Reversing, Maximum Voltage Rating 690V AC, Coil Voltage 120V AC, Horsepower @ Three Phase - 600V AC 7 1/2 hp
