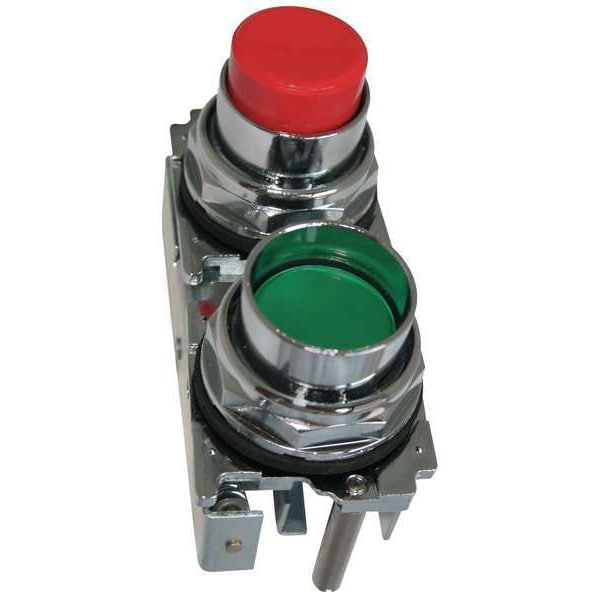

Eaton Pendant Pushbutton, 30mm, Flush/Extended 10250TA72 - main

Pendant Pushbutton, 30mm, Flush/Extended

  • Mfr # 10250TA72

  • Zoro # G5228097

product price: $190.99
/ea
Free Shipping & Returns

Key Features

Color
Green/Red
Mechanical Interlock
Yes
NEMA Rating
12, 13, 3, 3R, 4, 4X
Number of Operators
2
For Use With
30.5 mm Heavy-Duty Watertight/Oiltight-10250T
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250TA72
Zoro #
G5228097
UPC #
786680124419
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Width
3.5 in
Product Height
4.5 in
Product Length/Depth
3 in
Overall Depth
3 in
Overall Height
4.5 in
Manufacturer Warranty Length
1 yr
Overall Width
3.5 in
Panel Cutout Diameter
30 mm

Details

Item
Pendant Push Button
Color
Green/Red
Mechanical Interlock
Yes
NEMA Rating
12, 13, 3, 3R, 4, 4X
Number of Operators
2
For Use With
30.5 mm Heavy-Duty Watertight/Oiltight-10250T
Type of Operator
Flush Button/Extended Button
IP Rating
IP65
Head Material
Metal
Contact Rating
10A @ 600V AC/DC
Standards
CE, CSA, UL Listed
Action
Maintained/Maintained
Features
Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Terminal Connection
Screw Clamp
Type
30.5 mm, Heavy-Duty
Bezel Material
Chrome Plated Zinc Die Cast
Bezel
Chrome
Series
10250T
Mounting method
Flush
Illumination
Non-illuminated
Rating
NEMA 4X
Compliances
CE Marked
Certifications
UL Listed
Operating Mode
Maintained
Actuator
Mechanically interlocked, extended
Actuator color
Green, red
Actuator material
Plastic
Product Name
Eaton 10250T pushbutton operator
Push Button Style
Extended, Flush
Maintained Action Release
Push/Push
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Product Type
Push Button Operators
Operator Material
Metal
Number of Indicator Lights
0
Operating Temperature - Maximum
150 Degrees F
Resistance Properties
Oil and Grease Resistant, Watertight
Head Color
Green, Red
Operator Illumination
Non-Illuminated
Operating Temperature - Minimum
1 Degrees F

Description

Pendant Push Button, 30 mm, Maintained/Maintained, Type of Operator Flush Button/Extended Button, Head Material Metal, Bezel Material Chrome Plated Zinc Die Cast, Color Green/Red, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CE, CSA, UL Listed, Features Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
