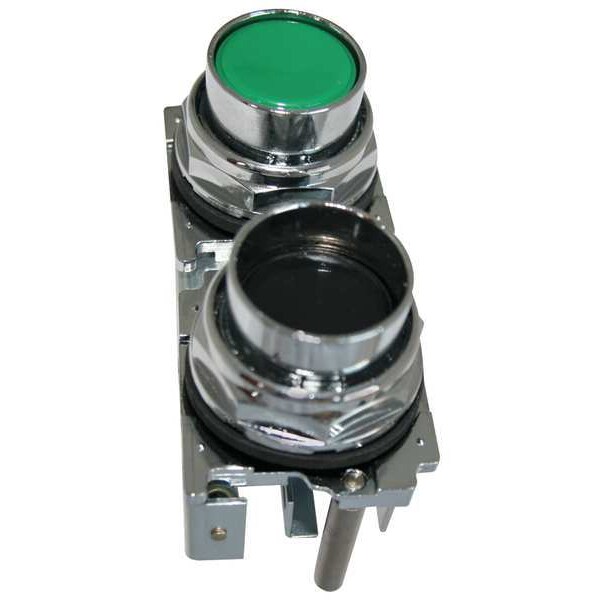

Eaton Pendant Pushbutton, 30mm, Flush/Flush 10250TA75 - main

Pendant Pushbutton, 30mm, Flush/Flush

  • Mfr # 10250TA75

  • Zoro # G5228237

product price: $176.99
/ea
Free Shipping & Returns

Key Features

Color
Green/Black
Size
30 mm
Number of Operators
2
Head Material
Metal
For Use With
30.5 mm Heavy-Duty Watertight/Oiltight-10250T
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
10250TA75
Zoro #
G5228237
UPC #
786680124433
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Width
3.2 in
Product Height
3.4 in
Product Length/Depth
4.3 in
Overall Depth
4.3 in
Panel Cutout Diameter
30 mm
Overall Width
3.2 in
Manufacturer Warranty Length
1 yr
Overall Height
3.4 in

Details

Item
Pendant Push Button
Color
Green/Black
Number of Operators
2
Head Material
Metal
For Use With
30.5 mm Heavy-Duty Watertight/Oiltight-10250T
Action
Maintained/Maintained
Standards
CE, CSA, UL Listed
IP Rating
IP65
Type of Operator
Flush Button/Flush Button
Contact Rating
10A @ 600V AC/DC
Mechanical Interlock
Yes
NEMA Rating
12, 13, 3, 3R, 4, 4X
Features
Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Terminal Connection
Screw Clamp
Bezel Material
Chrome Plated Zinc Die Cast
Bezel
Chrome
Type
30.5 mm, Heavy-Duty
Compliances
CE Marked
Actuator material
Plastic
Mounting method
Flush
Illumination
Non-illuminated
Actuator color
Green, black
Series
10250T
Rating
NEMA 3R
Operating Mode
Maintained
Certifications
CSA Certified
Actuator
Mechanically interlocked
Product Name
Eaton 10250T pushbutton operator
Maintained Action Release
Push/Push
Number of Indicator Lights
0
Resistance Properties
Oil and Grease Resistant, Watertight
Head Color
Black, Green
Operating Temperature - Maximum
150 Degrees F
Product Type
Push Button Operators
Push Button Style
Flush
Operator Material
Metal
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Operator Illumination
Non-Illuminated
Operating Temperature - Minimum
1 Degrees F

Description

Pendant Push Button, 30 mm, Maintained/Maintained, Type of Operator Flush Button/Flush Button, Head Material Metal, Bezel Material Chrome Plated Zinc Die Cast, Color Green/Black, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CE, CSA, UL Listed, Features Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
