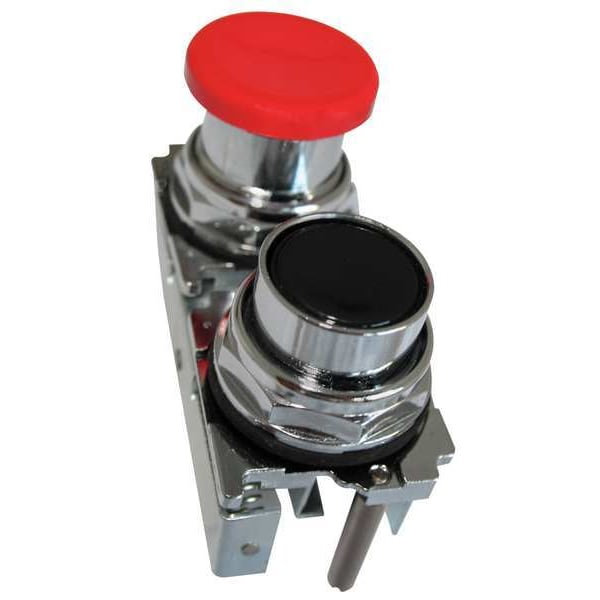

Eaton Pendant Pushbutton, 30mm, Flush/Mushroom 10250TA68 - main

Pendant Pushbutton, 30mm, Flush/Mushroom

  • Mfr # 10250TA68

  • Zoro # G5228081

product price: $272.99
/ea
Free Shipping & Returns

Key Features

Color
Black/Red
IP Rating
IP65
Type of Operator
Flush Button/Mushroom
Head Material
Metal
Mechanical Interlock
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250TA68
Zoro #
G5228081
UPC #
786680124389
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Width
3.3 in
Product Height
3.2 in
Product Length/Depth
4.4 in
Overall Width
3.3 in
Overall Height
3.2 in
Overall Depth
4.4 in
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
1 yr
Mushroom Head Diameter
40 mm

Details

Item
Pendant Push Button
Color
Black/Red
IP Rating
IP65
Type of Operator
Flush Button/Mushroom
Head Material
Metal
Mechanical Interlock
Yes
Action
Maintained/Maintained
Contact Rating
10A @ 600V AC/DC
Number of Operators
2
Standards
CE, CSA, UL Listed
For Use With
30.5 mm Heavy-Duty Watertight/Oiltight-10250T
NEMA Rating
12, 13, 3, 3R, 4, 4X
Features
Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Terminal Connection
Screw Clamp
Bezel Material
Chrome Plated Zinc Die Cast
Type
30.5 mm, Heavy-Duty
Bezel
Chrome
Actuator color
Black, red
Series
10250T
Operating Mode
Maintained
Actuator
Mechanically interlocked, mushroom head
Certifications
UL Listed
Rating
NEMA 12
Illumination
Non-illuminated
Actuator material
Plastic
Mounting method
Flush
Compliances
CE Marked
Product Name
Eaton 10250T pushbutton operator
Operator Material
Metal
Product Type
Push Button Operators
Head Color
Black, Red
Operator Illumination
Non-Illuminated
Resistance Properties
Oil and Grease Resistant, Watertight
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Number of Indicator Lights
0
Maintained Action Release
Push/Pull
Push Button Style
Flush, Mushroom Head
Operating Temperature - Minimum
1 Degrees F
Operating Temperature - Maximum
150 Degrees F

Description

Pendant Push Button, 30 mm, Maintained/Maintained, Type of Operator Flush Button/Mushroom, Head Material Metal, Bezel Material Chrome Plated Zinc Die Cast, Color Black/Red, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CE, CSA, UL Listed, Features Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
