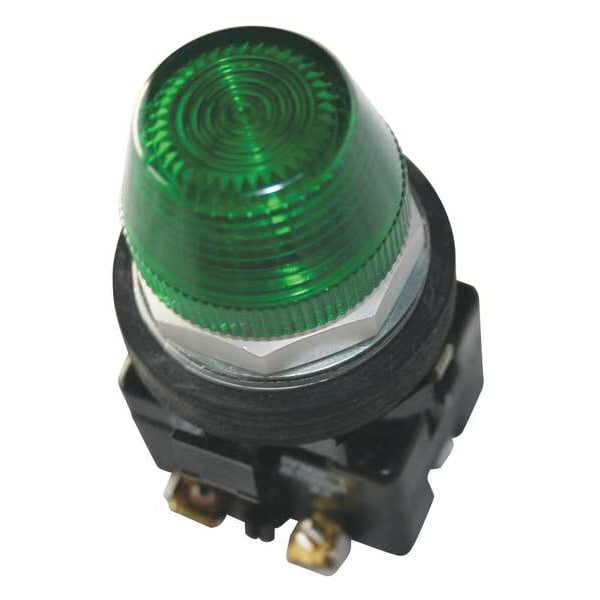

Eaton Pilot Light Complete Unit, LED, Green HT8HBGL1 - main

Pilot Light Complete Unit, LED, Green

  • Mfr # HT8HBGL1

  • Zoro # G3887791

product price: $150.99
/ea
Free Shipping & Returns

Key Features

Voltage
120V AC
Color
Green
Action
Momentary
Lamp Type
LED
Shape
Round
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HT8HBGL1
Zoro #
G3887791
UPC #
782113566559
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Length
0.01 in
Height
0.01 in
Width
0.01 in
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
1 yr

Details

Item
Pilot Light
Voltage
120V AC
Color
Green
Action
Momentary
Lamp Type
LED
Shape
Round
Terminal Connection
Saddle Clamp
Lens Material
Plastic
Bezel
Chrome
Lens Type
Fresnel
Lamp Module Type
Transformer
Basic Material
Metal
Lamp Voltage
6V AC/DC
Replacement Lamps
39R108
Standards
CSA, UL Listed
Includes
Lamp, Lens
NEMA Rating
12, 13, 3, 3R, 4, 4X
IP Rating
IP65
Body Material
Aluminum
Enclosure
NEMA 3R;NEMA 12;NEMA 4;NEMA 4X;NEMA 13;NEMA 3
Type
Watertight/Oiltight-HT800
Certifications
UL Listed;CSA Certified
Light Unit Voltage
120 Vac/dc
Product Name
Eaton HT800 pushbutton
Light Unit Type
LED, transformer
Illumination
Illuminated
Actuator
Standard
Series
HT800
Lamp Color
Green
Voltage Rating - Maximum
120 V AC
Includes Lens
Lens Included
Resistance Properties
Corrosion Resistant, Oil and Grease Resistant, Watertight
Lens Color
Green
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Body Finish
Anodized
Includes Lamp Module
Lamp Module Included
Includes Push-To-Test
No Push-To-Test Included
Lamp Voltage - Maximum
120 V AC/DC

Description

Pilot Light, Voltage 120V AC, Color Green, Lamp Type LED, Shape Round, Terminal Connection Saddle Clamp, Lens Material Plastic, 30 mm, Lamp Module Type Transformer, Basic Material Metal, Lens Type Fresnel, Lamp Voltage 6V AC/DC, Replacement Lamps 39R108, Body Material Aluminum, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Includes Lamp, Lens, Standards CSA, UL Listed
