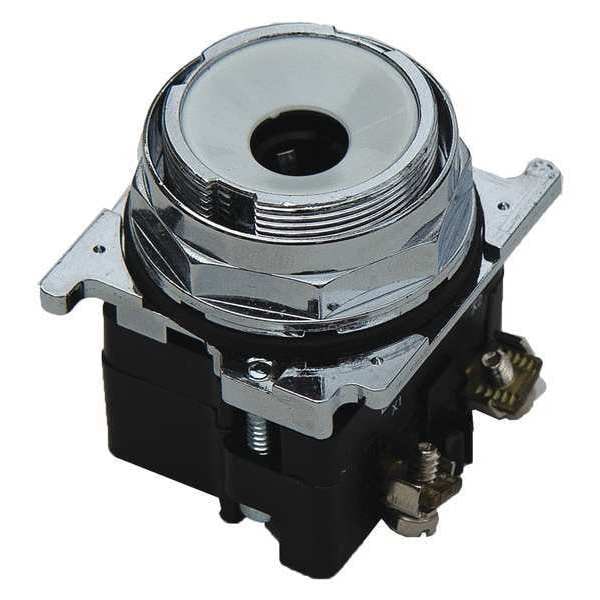

Eaton Pilot Light, No Lens, LED 10250T183L - main

Pilot Light, No Lens, LED

  • Mfr # 10250T183L

  • Zoro # G5227625

product price: $183.99
/ea
Free Shipping & Returns

Key Features

Voltage
380V AC
Lamp Type
LED
Shape
Round
Terminal Connection
Saddle Clamp
Lens Material
No Lens Included
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250T183L
Zoro #
G5227625
UPC #
786680119095
Country of Origin
United States

Dimensions

Size
30 mm
Length
0.01 in
Width
0.01 in
Height
0.01 in
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
1 yr

Details

Item
Pilot Light
Voltage
380V AC
Lamp Type
LED
Shape
Round
Terminal Connection
Saddle Clamp
Lens Material
No Lens Included
Lens Type
No Lens Included
Lamp Module Type
Transformer
Basic Material
Metal
Includes
Light Module, Operator
Replacement Lamps
39R105, 39R106, 39R107, 39R108, 39R109, 39R110
NEMA Rating
12, 13, 3, 3R, 4, 4X
Lamp Voltage
6V AC/DC
Standards
CE, CSA, UL Listed
Body Material
Metal
IP Rating
IP65
Type
Heavy-Duty Watertight/Oiltight
Series
10250T
Light Unit Voltage
380 Vac
Light Unit Type
LED, transformer
Compliances
CE Marked
Rating
NEMA 4;NEMA 3;NEMA 12;NEMA 13;NEMA 4X;NEMA 3R
Actuator
Standard
Certifications
CSA Certified;UL Listed
Product Name
Eaton 10250T pushbutton
Voltage Rating - Maximum
380 V AC
Resistance Properties
Oil and Grease Resistant, Watertight
Lamp Color
Clear
Includes Push-To-Test
No Push-To-Test Included
Includes Lens
No Lens Included
Lamp Voltage - Maximum
380 V AC
Includes Lamp Module
Lamp Module Included
Lens Color
No Lens Included
Body Finish
Chrome Plated
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X

Description

Pilot Light, Voltage 380V AC, Lamp Type LED, Shape Round, Terminal Connection Saddle Clamp, Lens Material No Lens Included, 30 mm, Lamp Module Type Transformer, Basic Material Metal, Lens Type No Lens Included, Lamp Voltage 6V AC/DC, Replacement Lamps 39R105, 39R106, 39R107, 39R108, 39R109, 39R110, Body Material Metal, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Includes Light Module, Operator, Standards CE, CSA, UL Listed
