  13. Push Buttn Cntrol Station, 1NO, Mshrm Head
Shop All Push Button Control Stations
Eaton

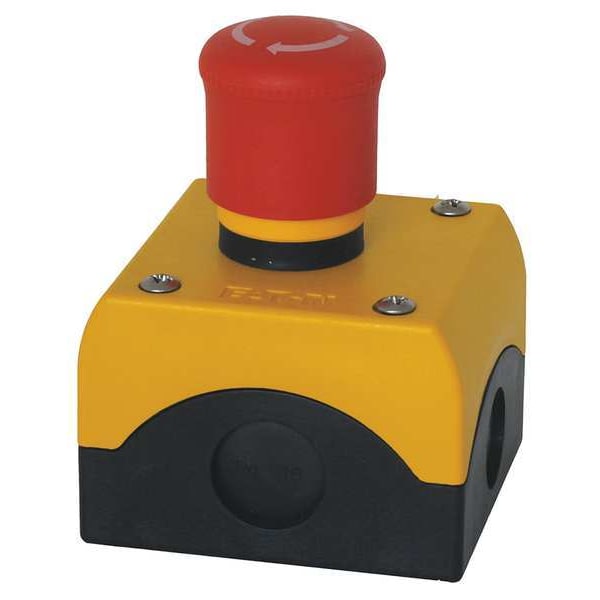

Push Buttn Cntrol Station, 1NO, Mshrm Head

original price: $166.72
23% off
new price: $126.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Action Maintained
  • Size 22 mm
  • Features 25% smaller depth than most competitor enclosures. Imoact resistant polycarbonate enclosure
  • Head Material Metal
  • Illuminated / Non-Illuminated Non-illuminated
See all product information

Product Information

Dimensions

Size 22 mm
Length 2.83 in
Width 3.15 in
Height 2.7 in
Panel Cutout Diameter 22 mm
Overall Width 3.15 in
Manufacturer Warranty Length 18 mo
Overall Height 2.7 in
Overall Depth 2.83 in

Details

Action Maintained
Features 25% smaller depth than most competitor enclosures. Imoact resistant polycarbonate enclosure
Head Material Metal
Illuminated / Non-Illuminated Non-illuminated
NEMA Rating 1, 13, 2, 3, 4, 4X
Number of Pilot Lights 0
Type of Operator 40mm Mushroom Head
Contact Form 1NO
Series M22
Hub Style Feed-Thru
Legend Emergency Stop
Standards CCC, CE, CSA, GoST-R, Lloyd's Register
Number of Operators 1
For Use With Control Station, Emergency Stop Operator
Contact Rating 10A @ 600V AC, 5A @ 24V DC
Item Control Station
Mechanical Interlock No
Enclosure Material Plastic
IP Rating IP66
NEMA Contact Rating Designation A600
Enclosure Color Yellow
Number of Speeds 1
Operator Color Red
DC Contact Rating 5 A @ 24 V
Button Color Red
AC Contact Rating 10 A @ 600 V
Enclosure color Yellow
Product Name Eaton M22 pushbutton control station
Contact Configuration 1 NO
Orientation Horizontal
Actuator Function Maintained
Compliances GoST-R;CE Marked;Bureau Veritas
Environmental Rating IP66, NEMA 4X, NEMA 13
Certifications CSA Certified;CCC Marked;Lloyd's Register Certified
Base Black
Actuator Twist-to-release mushroom head
Product Type Control Station
Operator Configuration Mushroom Head Push Button
NEMA Enclosure Rating 13, 4X
Resistance Properties Impact Resistant
Mounting Orientation Horizontal, Vertical
Includes Mechanical Interlock No Mechanical Interlock Included.
Maintained Action Release Twist

Description

Control Station, Number of Operators 1, Number of Pilot Lights 0, Size 22 mm, Legend Emergency Stop, Type of Operator 40mm Mushroom Head, Action Maintained, Operator Color Red, Contact Form 1NO, Mechanical Interlock No, NEMA Rating 1, 13, 2, 3, 4, 4X, Contact Rating 10A @ 600V AC, 5A @ 24V DC, NEMA Contact Rating Designation A600, IP Rating IP66, Head Material Metal, Enclosure Material Plastic, Enclosure Color Yellow, Standards CCC, CE, CSA, GoST-R, Lloyd's Register
