  15. Push Button Operator, Extended, Momentary Action, Not Applicable Release, Illuminated, Green

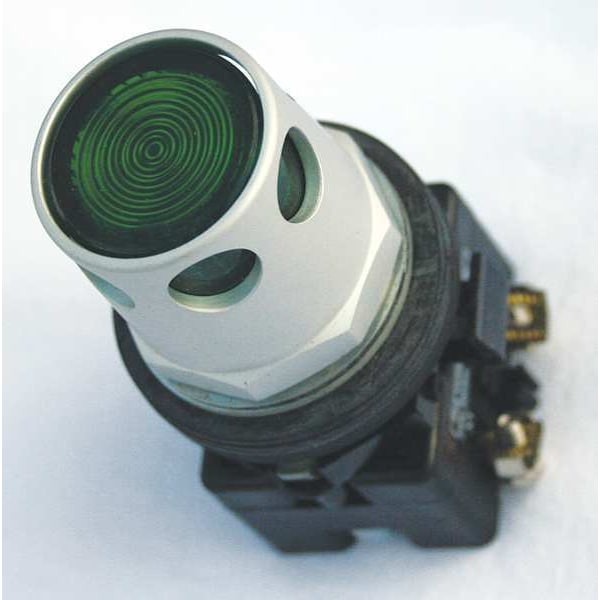

Eaton Push Button Operator, Extended, Momentary Action, Not Applicable Release, Illuminated, Green HT8GDGF3 - main

Push Button Operator, Extended, Momentary Action, Not Applicable Release, Illuminated, Green

  • Mfr # HT8GDGF3

  • Zoro # G4037643

product price: $181.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HT8GDGF3
Zoro #
G4037643
UPC #
782116302383
Country of Origin
Dominican Republic

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Product Width
2.1 in
Product Height
3.2 in
Product Length/Depth
2.4 in
Overall Depth
2.4 in
Overall Height
3.2 in
Overall Width
2.1 in
Manufacturer Warranty Length
1 yr

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Color
Green
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CE, CSA, UL Listed
NEMA Rating
12, 3R, 4X
Type of Operator
Extended Guarded Button
Basic Material
Metal
Lamp Module Type
Full Voltage
Lamp Module Voltage
24V AC/DC
Lamp Voltage
24V AC/DC
Bezel
Metal
Lamp Type
LED
IP Rating
IP65
Color
Green
Bezel Material
Chrome
Number of Operators
1
Series
HT800
Type
30.5 mm, Watertight/Oiltight-HT800
Features
Allen Bradley Compatible
Actuator
Extended
Lens Color
Green
Operating mode
Momentary
Operator material
Plastic
Illumination
Illuminated
Compliances
CE Marked
Certifications
UL Listed
Light unit voltage
24 Vac/dc
Light unit type
LED, full voltage
Product Name
Eaton HT800 pushbutton
Operating Temperature - Minimum
10 Degrees F
Operating Temperature - Maximum
140 Degrees F
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Product Type
Push Button Operators
Hazardous Location Specification
Not Rated
Resistance Properties
Corrosion Resistant, Oil and Grease Resistant, Watertight
Lamp Voltage - Maximum
24 V AC/DC
Number of Indicator Lights
1
Operator Material
Polymer

Description

Extended Push Button, 30 mm, Momentary, Type of Operator Extended Guarded Button, Basic Material Metal, Head Material Plastic, Bezel Material Chrome, Color Green, NEMA Rating 12, 3R, 4X, IP Rating IP65, Legend Not Applicable, Standards CE, CSA, UL Listed, Includes Lamp, Features Allen Bradley Compatible
