  15. Push Button Operator, Extended, Momentary / Momentary Action, Not Applicable Release, Illuminated

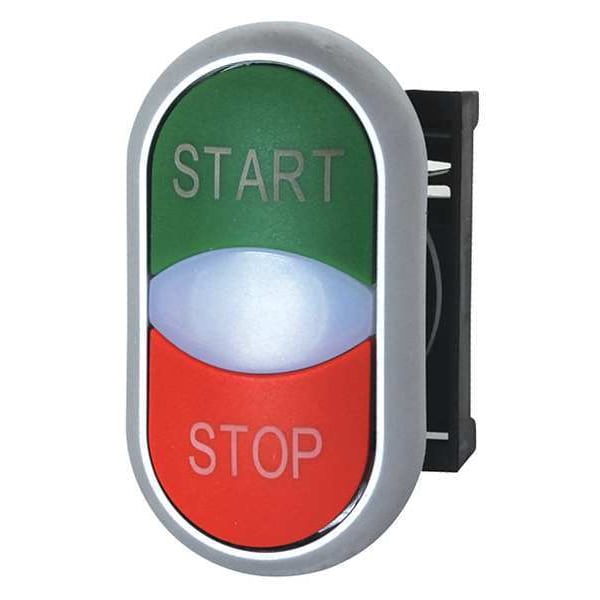

Eaton Push Button Operator, Extended, Momentary / Momentary Action, Not Applicable Release, Illuminated M22-DDL-GR-GB1-GB0 - main

Push Button Operator, Extended, Momentary / Momentary Action, Not Applicable Release, Illuminated

  • Mfr # M22-DDL-GR-GB1-GB0

  • Zoro # G6168951

product price: $43.69
/ea

Key Features

Push Button Style
Extended
Action
Momentary / Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Green; Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M22-DDL-GR-GB1-GB0
Zoro #
G6168951
UPC #
786685272276
Country of Origin
Germany

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Product Height
.52 in
Product Length/Depth
2.15 in
Product Width
1.17 in
Overall Width
1.17 in
Manufacturer Warranty Length
1 yr
Overall Depth
2.15 in
Overall Height
0.52 in

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary / Momentary
Operator Illumination
Illuminated
Head Color
Green; Red
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
Type of Operator
(2) Flush Buttons
Shape
Oval
Legend/Background Color
White/Green, White/Red
IP Rating
IP67, IP69K
Legend
Stop, Start
Number of Heads
2
Includes
Silver Bezel with Green Top and Red Bottom, Engraved Start/ Stop
NEMA Rating
1, 13, 2, 3, 4, 4X
Bezel
Silver
Bezel Material
Silver
Features
Includes Contact Block Mounting Adapter
Number of Operators
2
Type
22.5 mm Modular
Series
M22
Certifications
CCC Marked
Compliances
Bureau Veritas
Inscription
Top START, Bottom STOP
Environmental rating
IP66, NEMA 4X, NEMA 13
Special features
M22 series
Actuator function
Momentary
Button color
Top: green, bottom: red
Application
Pushbutton
Actuator
Extended, dual button
Illumination
Illuminated
Operating cycles
Light: 100,000, button: 200,000
Product Name
Eaton M22 modular pushbutton
Hazardous Location Specification
Not Rated
Legend Color
White
Product Type
Push Button Operators
Operating Temperature - Maximum
158 Degrees F
Number of Indicator Lights
0
Operating Temperature - Minimum
-13 Degrees F
Resistance Properties
Corrosion Resistant
Operator Material
Polycarbonate
Legend Background Color
Green/Red
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X

Description

Extended Push Button, 22 mm, Momentary/Momentary, Type of Operator (2) Flush Buttons, Head Material Metal, Bezel Material Silver, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP67, IP69K, Legend Stop, Start, Legend/Background Color White/Green, White/Red, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Includes Silver Bezel with Green Top and Red Bottom, Engraved Start/ Stop, Features Includes Contact Block Mounting Adapter
