  12. /
  13. Indicator Lights
  14. /
  15. Raised Indicator Light, Green, 240VAC

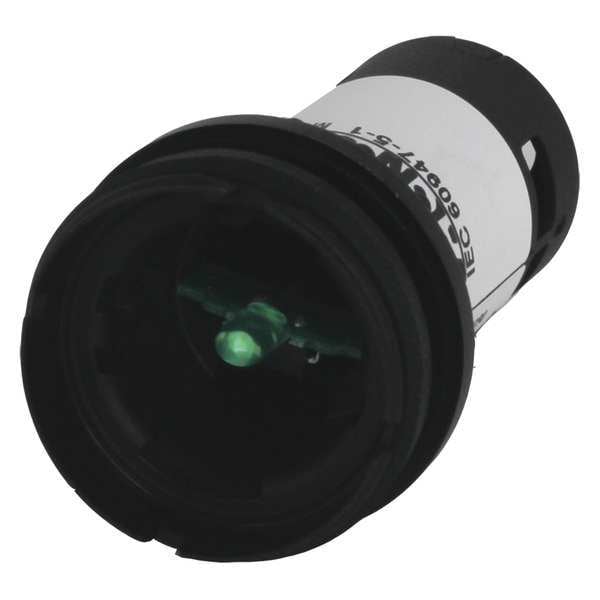

Eaton Raised Indicator Light, Green, 240VAC C22-L-XG-230 - main

Raised Indicator Light, Green, 240VAC

  • Mfr # C22-L-XG-230

  • Zoro # G7563412

product price: $38.19
/ea

Key Features

Voltage
230V AC
Material of Construction
Polycarbonate
Color
Green
Lamp Type
LED
Shape
Round
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C22-L-XG-230
Zoro #
G7563412
UPC #
786685896595
Country of Origin
Germany

Dimensions

Size
22mm Mounting dia
Panel Thickness
0.930 in
Height
2.2 in
Length
1.17 in
Width
1.17 in
Overall Depth
1.17 in
Overall Width
1.17 in
Manufacturer Warranty Length
18 mo
Overall Height
2.2 in
Panel Cutout Diameter
22 mm

Details

Item
Flush Panel Light
Voltage
230V AC
Material of Construction
Polycarbonate
Color
Green
Lamp Type
LED
Shape
Round
Terminal Connection
Screw
Electrical Connection
Terminal Clamp
Bezel
Flush indicating light
Lamp Module Type
Full Voltage
Basic Material
Plastic
Current Drawn
20 mA
IP Rating
IP67, IP69K
NEMA Rating
13, 4X
Average Life
100,000 hr
Standards
CSA, EN 60947, IEC 60947, UL Listed
Body Material
Polycarbonate
Type
Indicating Light
Certifications
EN 60947;IEC 60947;UL Listed;CSA Certified
Product Name
Eaton C22 compact pushbutton
Compliances
DIN VDE 0600
Illumination
Illuminated
Voltage Rating
230 V
Button Color
Green without lens
Series
C22
Lamp Color
Green
Includes Lamp Module
Lamp Module Included
NEMA Enclosure Rating
13, 4X
Includes Lens
No Lens Included
Head Style
Flush
Voltage Rating - Maximum
230 V AC

Description

Flush Panel Light, LED, Polycarbonate, Green, Voltage 230V AC, Size 22mm Mounting dia, Electrical Connection Terminal Clamp, Shape Round, Current Drawn 20 mA, Average Life 100,000 hr, NEMA Rating 13, 4X, IP Rating IP67, IP69K, Panel Thickness 0.930 in, Standards CSA, EN 60947, IEC 60947, UL Listed
