  13. Raised Indicator Light, White, 24VAC/DC
Shop All Indicator Lights
Eaton

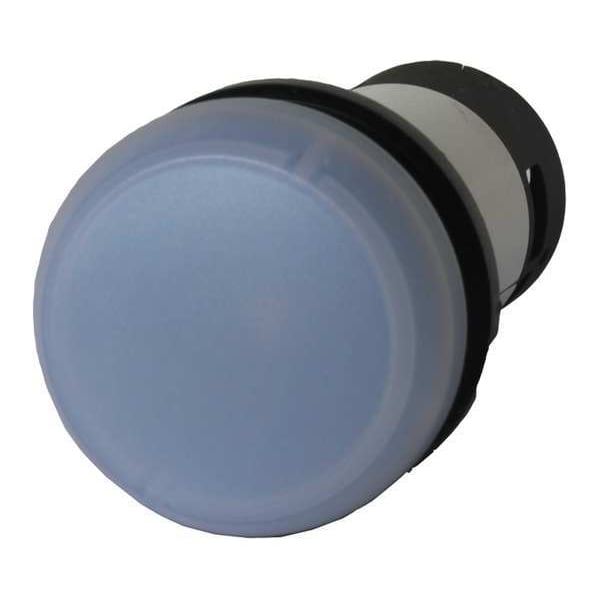

Raised Indicator Light, White, 24VAC/DC

product price: $31.55
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 24V AC/DC
  • Color White
  • Material of Construction Polycarbonate
  • Lamp Type LED
  • Shape Round
See all product information

Product Information

Dimensions

Size 22mm Mounting dia
Height 2.2 in
Length 1.17 in
Width 1.17 in
Manufacturer Warranty Length 18 mo
Overall Width 1.17 in
Overall Depth 1.17 in
Panel Cutout Diameter 22 mm
Overall Height 2.2 in

Details

Item Flush Panel Light
Voltage 24V AC/DC
Color White
Material of Construction Polycarbonate
Lamp Type LED
Shape Round
Terminal Connection Screw
Electrical Connection Terminal Clamp
Bezel Plastic
Lamp Module Type Full Voltage
Basic Material Plastic
NEMA Rating 13, 4X
Standards CSA, EN 60947, IEC-60947, UL Listed
Current Drawn 20 mA
Panel Thickness 0.930 in
IP Rating IP67, IP69K
Average Life 100,000 hr
Body Material Polycarbonate
Type Indicating Light
Compliances DIN VDE 0600
Product Name Eaton C22 compact pushbutton
Series C22
Illumination Illuminated
Voltage Rating 24 Vac/dc
Certifications UL Listed;EN 60947;IEC 60947;CSA Certified
Includes Lens Lens Included
Lamp Color White
Voltage Rating - Maximum 24 V AC/DC
NEMA Enclosure Rating 13, 4X
Lens Color White
Head Style Flush
Includes Lamp Module Lamp Module Included

Description

Flush Panel Light, LED, Polycarbonate, White, Voltage 24V AC/DC, Size 22mm Mounting dia, Electrical Connection Terminal Clamp, Shape Round, Current Drawn 20 mA, Average Life 100,000 hr, NEMA Rating 13, 4X, IP Rating IP67, IP69K, Panel Thickness 0.930 in, Standards CSA, EN 60947, IEC-60947, UL Listed
