  11. Retroreflective Photoelectric Sensor, Bare Wire, Right Angle, Cylindrical, Selectable Light On/Dark On, NPN

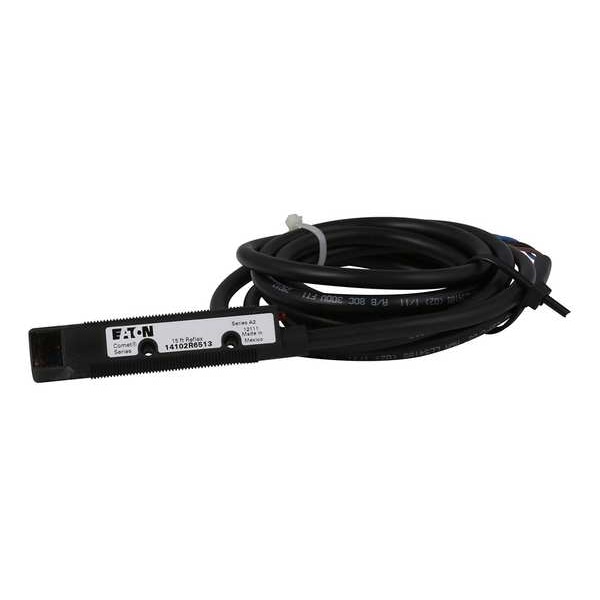

Eaton Retroreflective Photoelectric Sensor, Bare Wire, Right Angle, Cylindrical, Selectable Light On/Dark On, NPN 14102R6513 - main

Retroreflective Photoelectric Sensor, Bare Wire, Right Angle, Cylindrical, Selectable Light On/Dark On, NPN

  • Mfr # 14102R6513

  • Zoro # G0600302

product price: $327.99
/ea
Free Shipping & Returns

Key Features

Width
4.01"
Depth
0.47"
Min. Object Size
Adjustable By Changing Gain
IP Rating
IP69K
Max. Load Current
300 mA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
14102R6513
Zoro #
G0600302
UPC #
-
Country of Origin
Mexico

Dimensions

Width
4.01"
Depth
0.47"
Min. Object Size
Adjustable By Changing Gain
Diameter - Cylindrical Photoelectric Sensor
18 mm
Length
3.00"
Diameter
18mm
Length - Cylindrical Photoelectric Sensor
76 mm
Overall Height
18 mm
Cable Length
2 m
Product Length/Depth
3 in
Product Height
.71 in
Product Width
.47 in
Overall Width
12 mm
Overall Diameter
18 mm
Sensor Diameter
18 mm
Overall Depth
76 mm

Details

Item
Photoelectric Sensor
IP Rating
IP69K
Max. Load Current
300 mA
Max. Sensing Distance
4500mm
Features
Latching Short Circuit
Response Time (ms)
10
Sensing Method
Retroreflective
Body Material
Polyurethane
Response Time
10 msec
Standards
cUL Listed, UL Listed
Max. Sensing Distance - Cylindrical Photoelectric Sensor
4.5 m
Electrical Connection
Bare Wire
Operating Temp. Range
-40 Degrees to 70 Degrees C
Power Requirement - Cylindrical Photoelectric Sensor
20 to 264V AC/15 to 30V DC
Light Source
Red LED
Operating Frequency
500 Hz
Power Requirement
20 to 264VAC/15 to 30VDC
Maximum AC current
300 mA
Enclosure Material
Polyurethane foam (RIM)
Type
Photoelectric Sensor
Protection
Latching short circuit
Input voltage
20-264 Vac at 50/60 Hz, 15-30 Vdc (NPN)
Cable type
Polyvinyl Chloride (PVC)
Contact Rating
300 mA AC/DC at 20-264 Vac/15-30 Vdc
Contact configuration
AC: L1 switched
Maximum DC current
300 mA
LED indicator
Output ON
AC Voltage Rating
20-264V AC
Operating Temperature - Maximum
158 Degrees F
Sensing Distance - Maximum
4.5 m
Includes Indicator Lights
Indicator Lights Included
Series
Comet
Emitted Sensor Light
Infrared
Sensing Distance - Minimum
30 mm
Switching Frequency
500 Hz
Style
Cylindrical
DC Voltage Rating
15-30V DC
Operating Temperature - Minimum
-40 Degrees F
Orientation
Right Angle
Load Current - Maximum
300 mA
Output Circuit Type
NPN
Operating Mode
Selectable Light On/Dark On
NEMA Enclosure Rating
1, 12, 13, 3, 4, 4X, 6
Electrical Installation Type
Prewired Cable

Description

Photoelectric Sensor, Sensing Method - Cylindrical Photoelectric Sensor Retroreflective, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 20 to 264V AC/15 to 30V DC, Electrical Connection - Cylindrical Photoelectric Sensor 2m Cable, Circuit Type - Cylindrical Photoelectric Sensor NPN, Max. Sensing Distance - Cylindrical Photoelectric Sensor 4.5 m
