  11. Retroreflective Photoelectric Sensor, Bare Wire, Right Angle, Rectangular, Selectable Light On/Dark On, SPDT

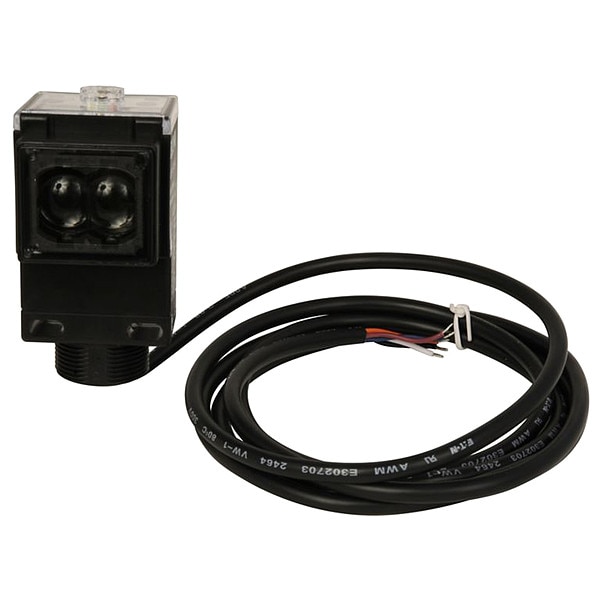

Eaton Retroreflective Photoelectric Sensor, Bare Wire, Right Angle, Rectangular, Selectable Light On/Dark On, SPDT 1450E-6514 - main

Retroreflective Photoelectric Sensor, Bare Wire, Right Angle, Rectangular, Selectable Light On/Dark On, SPDT

  • Mfr # 1450E-6514

  • Zoro # G2053213

product price: $281.99
/ea
Free Shipping & Returns

Key Features

Width
1.81"
Depth
1.91"
Electrical Connection
Bare Wire
Max. Sensing Distance
9m
Operating Frequency
33 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1450E-6514
Zoro #
G2053213
UPC #
-
Country of Origin
China

Dimensions

Width
1.81"
Depth
1.91"
Depth - Rectangular Photoelectric Sensor
48 mm
Length
3.46"
Height - Rectangular Photoelectric Sensor
88 mm
Width - Rectangular Photoelectric Sensor
46 mm
Min. Object Size
Adjustable By Changing Gain
Cable Length
2 m
Overall Height
46 mm
Product Length/Depth
3.46 in
Product Height
1.81 in
Product Width
1.91 in
Overall Width
49 mm
Overall Depth
88 mm

Details

Item
Photoelectric Sensor
Electrical Connection
Bare Wire
Max. Sensing Distance
9m
Operating Frequency
33 Hz
Max. Load Current
3 A
Light Source
Red LED
Standards
CE, CSA Certified
Power Requirement - Rectangular Photoelectric Sensor
24 to 240V AC/12 to 240V DC
Sensing Method
Retroreflective
Max. Sensing Distance - Rectangular Photoelectric Sensor
9 m
IP Rating
IP67, IP69K
Power Requirement
24 to 240VAC/12 to 240VDC
Body Material
Plastic
Response Time
15 msec
Features
Output Short Circuit Protection, Overcircuit Protection, Reverse Polarity Protection
Operating Temp. Range
-25 Degrees to 55 Degrees C
Compliances
CE Marked
Cable type
Polyvinyl Chloride (PVC)
Protection
Output short circuit, overcircuit and reverse polarity
Maximum AC current
3A
Enclosure Material
Fiberglass reinforced plastic
LED indicator
Power: yellow
Type
Photoelectric Sensor
Contact Rating
3A at 240V
Input voltage
24-240 Vac, 12-240 Vdc
Contact configuration
SPDT form C relay
Style
Rectangular
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X, 6
Includes Indicator Lights
Indicator Lights Included
Orientation
Right Angle
Load Current - Maximum
3,000 A
Series
Enhanced 50
Switching Frequency
33 Hz
Operating Temperature - Minimum
-13 Degrees F
DC Voltage Rating
12-240V DC
Operating Temperature - Maximum
131 Degrees F
Output Circuit Type
SPDT
Sensing Distance - Minimum
152 mm
Electrical Installation Type
Prewired Cable
Sensing Distance - Maximum
9 m
AC Voltage Rating
24-240V AC
Operating Mode
Selectable Light On/Dark On
Emitted Sensor Light
Red Light

Description

Photoelectric Sensor, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On
