  11. Retroreflective Photoelectric Sensor, Bare Wire, Straight, Cylindrical, Selectable Light On/Dark On, NPN and PNP

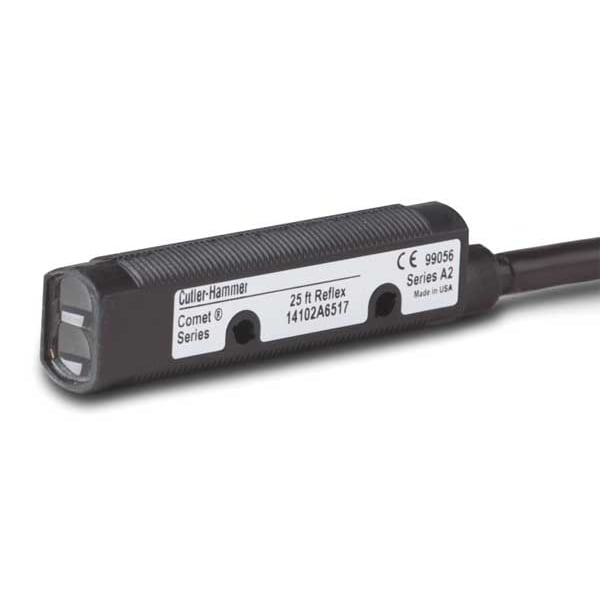

Eaton Retroreflective Photoelectric Sensor, Bare Wire, Straight, Cylindrical, Selectable Light On/Dark On, NPN and PNP 14102A6517 - main

Retroreflective Photoelectric Sensor, Bare Wire, Straight, Cylindrical, Selectable Light On/Dark On, NPN and PNP

  • Mfr # 14102A6517

  • Zoro # G0884003

product price: $235.99
/ea
Item requires special delivery charges. A $55.00 per item surcharge will be applied.

Key Features

Width
3.46"
Depth
0.47"
Length
2.60"
Max. Sensing Distance - Cylindrical Photoelectric Sensor
7.6 m
Electrical Connection
Bare Wire
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
14102A6517
Zoro #
G0884003
UPC #
-
Country of Origin
Mexico

Dimensions

Width
3.46"
Depth
0.47"
Length
2.60"
Min. Object Size
Adjustable By Changing Gain
Length - Cylindrical Photoelectric Sensor
66 mm
Diameter - Cylindrical Photoelectric Sensor
18 mm
Diameter
18mm
Overall Height
51 mm
Cable Length
2 m
Product Height
50.8 mm
Wavelength of the sensor
0 nm
Product Width
133.35 mm
Sensor length
66 mm
Light dot size
0 mm²
Product Length/Depth
158.75 mm
Overall Width
133 mm
Sensor Diameter
18 mm
Overall Diameter
18 mm
Overall Depth
159 mm

Details

Item
Photoelectric Sensor
Max. Sensing Distance - Cylindrical Photoelectric Sensor
7.6 m
Electrical Connection
Bare Wire
IP Rating
IP69K
Power Requirement - Cylindrical Photoelectric Sensor
10 to 30V DC
Max. Load Current
250 mA
Features
Auto Reset Short Circuit
Power Requirement
10 to 30VDC
Standards
CE, CSA C22.2 No.14, CSA, CSA 3211-07, CSA 50513, cUL Listed, IEC/EN 60947-5-2, UL 508, UL NRKH, UL NRKH7, UL E117028, UL Listed
Response Time (ms)
1
Body Material
Polyurethane
Response Time
1 msec
Sensing Method
Retroreflective
Max. Sensing Distance
7600mm
Operating Frequency
500 Hz
Operating Temp. Range
-40 Degrees to 70 Degrees C
Light Source
Red LED
Voltage type
DC
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Transmission range of the safety field
0 m
Rated switching distance (Sn)
7600 mm
Switching distance - max
0 mm
Sensing mode
Light-/dark switching
Number of outputs (protected contact energized)
0
Switching output type
PNP
Sensor material
Insulated material
Output current (mA) - max
100 mA
Load current
Max. 250 mA (Ie, NPN, 120 > 50°C)
Output current at protected output - max
0 mA
Number of outputs (protected semiconductor)
0
LED indicator
Output ON
Rated control supply voltage (Us) at DC - max
30 V
Number of contact energized outputs with signalling function
0
Reflector distance - min
0 mm
Ambient operating temperature - max
70°C
Optical surface material
Plastic
Ambient operating temperature - min
-40°C
Protection
Auto reset short circuit
Shock Resistance
100 g, Mechanical, Shock duration 3 ms
Adjustment type
Manual adjustment
Enclosure Material
Polyurethane foam (RIM)
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Type
Optical sensors
Input voltage
10-30 Vdc
Rated control supply voltage (Us) at DC - min
10 V
Cable type
Polyvinyl Chloride (PVC)
Functions
For combination with reflector
Contact Rating
100 mA PNP, 250 mA NPN at 10-30 Vdc
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Voltage rating - max
30 V
Switching voltage of OSSD at state high
0 V
Number of outputs (semiconductor with signaling function)
2
Switch function type
Programmable/configurable
Operational current (Ib) in the switched state at 24 V DC
30 A
Enclosure type
Cylinder, screw-thread
Maximum DC current
100 mA PNP, 250 mA NPN
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Contact configuration
NPN and PNP open collector
Switching Frequency
500 Hz
NEMA Enclosure Rating
1, 12, 13, 3, 4, 4X, 6
Sensing Distance - Minimum
30 mm
Orientation
Straight
Electrical Installation Type
Prewired Cable
Includes Indicator Lights
Indicator Lights Included
Sensing Distance - Maximum
7.6 m
Operating Temperature - Maximum
158 Degrees F
Output Circuit Type
NPN and PNP
Style
Cylindrical
Emitted Sensor Light
Red Light
Operating Temperature - Minimum
-40 Degrees F
Operating Mode
Selectable Light On/Dark On
DC Voltage Rating
10-30V DC
Series
E58
Load Current - Maximum
250 mA
Output Circuit Number of Wires
4

Description

Photoelectric Sensor, Sensing Method - Cylindrical Photoelectric Sensor Retroreflective, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 10 to 30V DC, Electrical Connection - Cylindrical Photoelectric Sensor 2m Cable, Circuit Type - Cylindrical Photoelectric Sensor NPN/PNP, Max. Sensing Distance - Cylindrical Photoelectric Sensor 7.6 m
