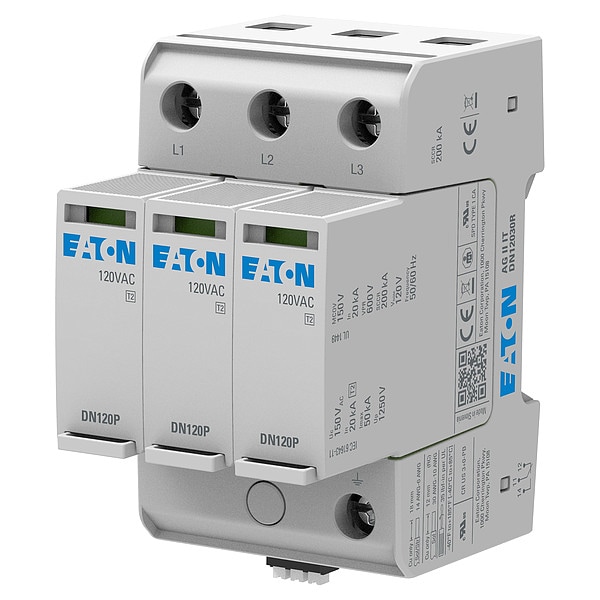

Surge Protection Device, 3 Phase, 120V, 3 Poles, 3 Wires
- Mfr # AGDN12030R
- Zoro # G009981536
product price:Â
$
189.99
/ea
Free Shipping & Returns
Key Features
Mounting Style
DIN-Rail, Panelboard
Phase
3
Voltage
120V
Number of Poles
3
Voltage Protection Rating
1500V (L-L, L-G)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- AGDN12030R
- Zoro #
- G009981536
- UPC #
- -
- Country of Origin
- Slovenia
- Item
- Surge Protection Device
- Mounting Style
- DIN-Rail, Panelboard
- Phase
- 3
- Voltage
- 120V
- Number of Poles
- 3
- Voltage Protection Rating
- 1500V (L-L, L-G)
- Number of Wires
- 3 Wires
- Modes of Protection
- L-G, L-N, N-G
- Max. Surge Current per Mode
- 25 kA
- Max. Surge Current per Phase
- 50 kA
- Nominal Discharge Current
- 20 kA
- Short Circuit Current Rating
- 200 kA
- Filtering
- No
- Max. Continuing Operating Voltage
- 120 V AC
- Enclosure Material
- Non-Metallic
- Includes
- Alarm Contacts
- Standards
- ANSI/ULT 1449 5th Edition, Prop 65 Compliant, REACH Compliant, RoHS Compliant
- Max. Operating Temp.
- 185 Degrees F
- Amps
- 50 kA
- Status Indicator
- Mechanical Flag
- Min. Operating Temp.
- -40 Degrees F
- UL SPD Type
- Type 1CA
- System Connection
- Parallel
- Basic Material
- Nonmetallic
Dimensions
- Depth
- 4.13 in
- Width
- 2.13 in
Description
Surge Protection Device, Nonmetallic, Amps 50 kA, Depth 4.13 in
