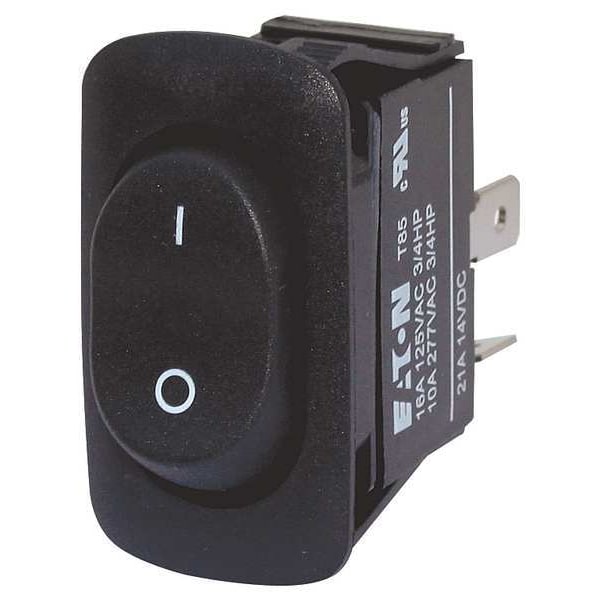

Eaton Switch, Maint, Off/On, 1/4 In Tab XRXAXXXNV1CU - main

Switch, Maint, Off/On, 1/4 In Tab

  • Mfr # XRXAXXXNV1CU

  • Zoro # G5307032

product price: $9.79
/ea

Key Features

Contact Form
SPST
Number of Connections
2
Switch Function
Off/On
Terminals
0.250 in Quick Connect Tab
Mounting Hole
0.830 in x 1.460 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XRXAXXXNV1CU
Zoro #
G5307032
UPC #
786685885513
Country of Origin
China

Dimensions

Length
1.81 in
Width
0.98 in
Height
1.87 in
Overall Height
1.81 in
Overall Depth
1.87 in
Overall Width
0.98 in
Mounting Hole Length
1.46 in
Mounting Hole Width
0.83 in

Details

Item
Rocker Switch
Contact Form
SPST
Number of Connections
2
Switch Function
Off/On
Terminals
0.250 in Quick Connect Tab
Mounting Hole
0.830 in x 1.460 in
AC Contact Rating
10 A @ 277 V, 16 A @ 125 V
HP
3/4 hp
Standards
cRUus, RoHS, UL E2702
Special Features
Non-Illuminated
Product Type
Rocker Switch
IP Rating
IP56
Number of Positions
2
Operator Illumination
Non-Illuminated
Includes Lens
No Lens Included
Operating Temperature - Minimum
-4 Degrees F
Features
Nylon with Glass Fiber Actuators, Nylon Material Frames, Plastic Bezel, Silver Plated Brass Terminals
Series
X
Switch Function Configuration
Off/On
Operating Temperature - Maximum
176 Degrees F
Lamp Type
LED
Terminal Connection Type
0.25 in Quick Connect Tab
Horsepower
3/4 hp @ 277 V

Description

Rocker Switch, Contact Form SPST, Number of Connections 2, Switch Function Off/On, Terminals 0.250 in Quick Connect Tab, Mounting Hole 0.830 in x 1.460 in, AC Contact Rating 10 A @ 277 V, 16 A @ 125 V, HP 3/4 hp, Standards cRUus, RoHS, UL E2702, IP Rating IP56, Special Features Non-Illuminated
