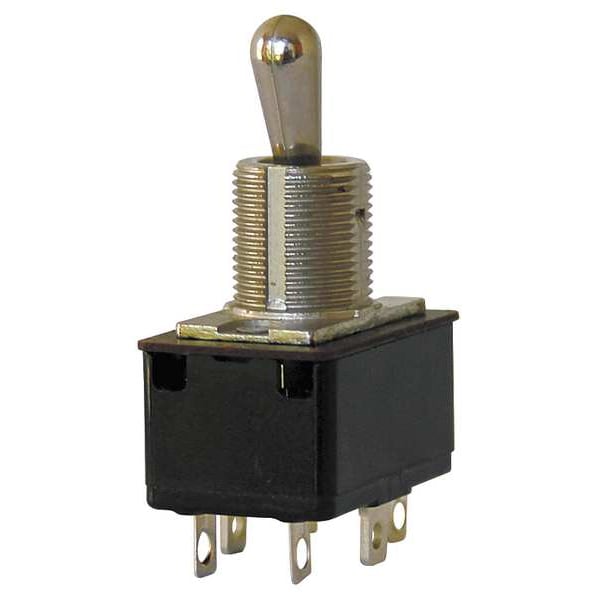

Toggle Switch, DPST, 10A at 250V, QuikConnct

  • Mfr # 7565K7

  • Zoro # G5304747

product price:
$
10.69
/ea

Key Features

Switch Function
On/On
Contact Form
DPST
HP
3/4 hp
Actuator Style
Bat
Amps
15A @ 125 VAC, 10A @ 250VAC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7565K7
Zoro #
G5304747
UPC #
786685680415
Country of Origin
Mexico

Dimensions

Stem Length
0.47 in
Actuator Length
0.56 in
Stem Dia. and Thread Size
0.500 in
Product Width
.75 in
Bushing Length
0.469 in
Product Length/Depth
1.312 in
Product Height
1.2 in
Lever length
0.563 in
Stem Thread Size
15/32-32
Overall Width
0.62 in
Mounting Hole Diameter
0.5 in
Stem Diameter
0.47 in
Overall Height
2.13 in
Overall Depth
1.13 in

Details

Switch Function
On/On
Contact Form
DPST
HP
3/4 hp
Actuator Style
Bat
Amps
15A @ 125 VAC, 10A @ 250VAC
Number of Connections
6
Terminals
Spade
Standards
CSA, RoHS, UL Listed
Item
Toggle Switch
Actuator Color
Silver
Mounting Hole
0.50 in dia
Stem Color
Silver
Includes
Panel Mounting
AC Contact Rating
10 A @ 250 V, 15 A @ 125 V
Product Type
Toggle Switch
Series
7500
Circuit position down
On
Horsepower
3/4 hp
Amperage Rating
15A at 125V, 10A at 250V
Throw type
Double-throw
Number Of Poles
Two-pole
Certifications
UL Recognized
Circuit position up
On
Circuit number
D
Circuit position center
None
Number of Poles
2
Operating Temperature - Minimum
0 Degrees F
Features
Rotate Keyway 180 deg
Number of Positions
3
Terminal Connection Type
Spade Terminals
Operating Temperature - Maximum
150 Degrees F
Switch Function Configuration
On/None/On
Metal Actuator Finish
Silver

Description

Toggle Switch, Contact Form DPST, Number of Connections 6, Switch Function Off/On, AC Contact Rating 10 A @ 250 V, 15 A @ 125 V, HP 3/4 hp, Terminals Quick Connect, Mounting Hole 0.50 in dia, Actuator Length 0.56 in, Stem Length 0.47 in, Stem Dia. and Thread Size 0.500 in, Actuator Color Silver, Stem Color Silver, Standards CSA, RoHS, UL Listed, Includes Panel Mounting
