  13. Toggle Switch, SPST, 2 Connections, On/Off, 3/4 hp, 10A at 250V AC, 15A at 125V AC

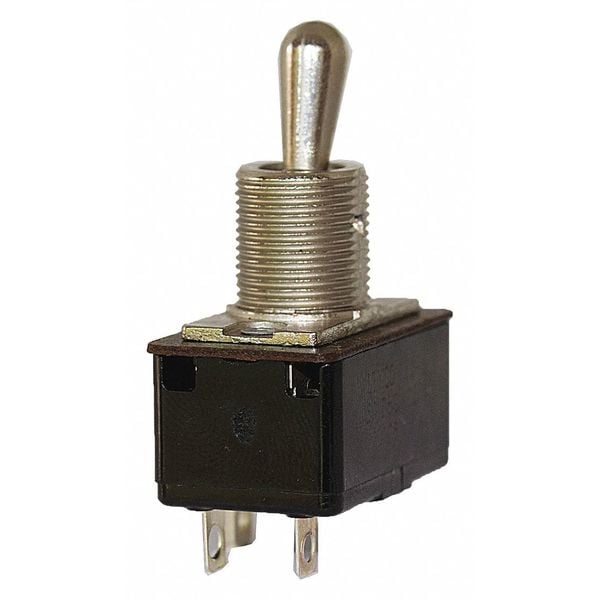

Eaton Toggle Switch, SPST, 2 Connections, On/Off, 3/4 hp, 10A at 250V AC, 15A at 125V AC 7501K15 - main

Toggle Switch, SPST, 2 Connections, On/Off, 3/4 hp, 10A at 250V AC, 15A at 125V AC

  • Mfr # 7501K15

  • Zoro # G5403587

product price: $4.59
/ea

Key Features

Switch Function
On/Off
Contact Form
SPST
HP
3/4 hp
Number of Connections
2
Stem Length
0.47 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7501K15
Zoro #
G5403587
UPC #
786685676074
Country of Origin
Mexico

Dimensions

Stem Length
0.47 in
Actuator Length
0.56 in
Stem Dia. and Thread Size
0.500 in
Product Length/Depth
1.312 in
Product Width
.75 in
Product Height
1.2 in
Lever length
0.563 in
Bushing Length
0.469 in
Overall Height
2.13 in
Stem Diameter
0.47 in
Overall Depth
1.13 in
Mounting Hole Diameter
0.5 in
Overall Width
0.62 in
Stem Thread Size
15/32-32

Details

Switch Function
On/Off
Contact Form
SPST
HP
3/4 hp
Number of Connections
2
Terminals
Quick Connect
Item
Toggle Switch
AC Contact Rating
10 A @ 250 V, 20 A @ 125 V
Actuator Color
Silver
Includes
Panel Mounting
Mounting Hole
0.50 in dia
Standards
CSA, RoHS, UL Listed
Stem Color
Silver
Type
General purpose
Number of Poles
1
Series
7500
Product Type
Toggle Switch
Features
Rotate Keyway 180 deg
Amperage Rating
15A at 125V, 10A at 250V
Horsepower
1/2 hp @ 125V AC, 3/4 hp @ 250V AC
Throw type
Single-throw
Circuit position center
None
Number Of Poles
Single-pole
Circuit position up
On
Certifications
UL Recognized
Circuit position down
Off
Operating Temperature - Minimum
0 Degrees F
Metal Actuator Finish
Silver
Operating Temperature - Maximum
150 Degrees F
Terminal Connection Type
Spade Terminals
Switch Function Configuration
On/None/Off
Number of Positions
3

Description

Toggle Switch, Contact Form SPST, Number of Connections 2, Switch Function On/Off, AC Contact Rating 10 A @ 250 V, 20 A @ 125 V, HP 3/4 hp, Terminals Quick Connect, Mounting Hole 0.50 in dia, Actuator Length 0.56 in, Stem Length 0.47 in, Stem Dia. and Thread Size 0.500 in, Actuator Color Silver, Stem Color Silver, Standards CSA, RoHS, UL Listed, Includes Panel Mounting
