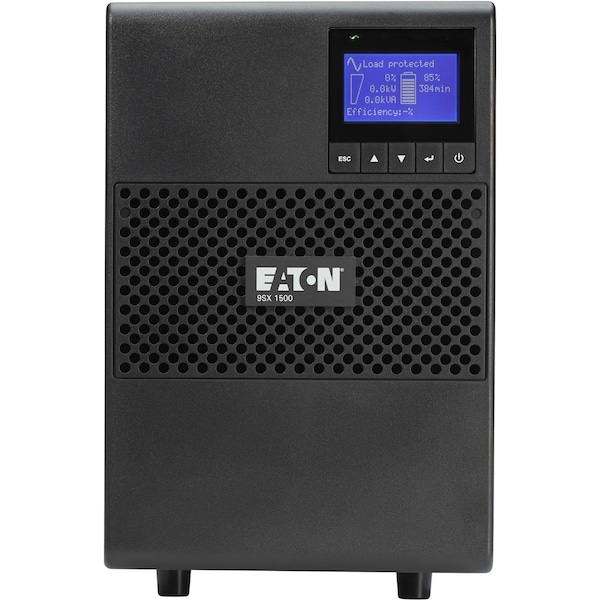

Eaton UPS System, 1500VA, Online/Double Conversion, Out: 120V AC In: 120V 9SX1500 - main

UPS System, 1500VA, Online/Double Conversion, Out: 120V AC In: 120V

  • Mfr # 9SX1500

  • Zoro # G9642677

product price: $1,750.99
/ea
Free Shipping & Returns

Key Features

UPS Type
Online/Double Conversion
Power Rating
1500VA
Mounting
Tower
Wattage
1350 W
Input Voltage
120V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9SX1500
Zoro #
G9642677
UPC #
743172091246
Country of Origin
Unknown

Dimensions

Width
17.1 in
Product Height
9.9 in
Product Length/Depth
17.1 in
Input Cord Length
8 ft

Details

Item
UPS System
UPS Type
Online/Double Conversion
Power Rating
1500VA
Mounting
Tower
Wattage
1350 W
Input Voltage
120V
Output Voltage
120V AC
Backup Time (Half/Full Load)
17 min/6 min
Number of Outlets
6
Standards
cULus Listed
NEMA Receptacle Configuration
(6) 5-15R
Input Frequency Range
60 Hz: 50 to 70 Hz, 50 Hz: 40 to 60 Hz
VA rating
1500 VA
User interface
5-button graphical user interface
Input connection
5-15P
Battery management
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
Communication
(1) MiniSlot|(1) USB port|(1) Serial RS-232 port|(1) RPO/ROO/Signal input terminal|(1) mini-terminal block for output relay
Construction type
Free standing model
Form factor
Tower
Output Waveform
True sine wave
Expansion Slots
(1) Mini-Slot (MS) expansion port. Optional connectivity cards may be ordered separately.|- Gigabit Web/SNMP card part number: NETWORK-M2|- Modbus card part number: MODBUS-MS|- Relay card part number: RELAY-MS
Package Contents
9SX 1500 VA UPS|Quick start guide|RS-232 serial cable|USB cable
Output Frequency
50/60 Hz
Extended Battery Capability
Yes
Temperature range
0° to 40°C (32° to 104°F)
Compliances
FCC Compliant
Internal bypass
Yes
Input Power Factor
>.99
Battery replacement
Hot-swappable internal batteries and extended battery modules (EBMs)
Feed type
1
Output Power Factor
0.9
Potential free switch contact
Yes
Outlet Type
Outputs: (6) 5-15R
