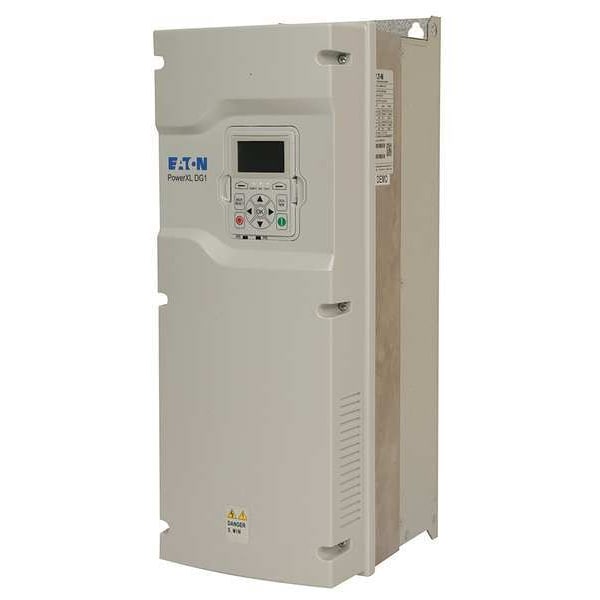

Variable Freq Drive, 15 HP, 48A, 208-240VAC

  • Mfr # DG1-32048FB-C21C

  • Zoro # G0120970

product price:  $3,129.99
/ea
Free Shipping & Returns

Key Features

Start/Stop Control
Automatic, Manual, Programmable
Control Type
Built-In Keypad
Dynamic Braking
Yes
Starting Torque
1.5
Max. HP
15 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DG1-32048FB-C21C
Zoro #
G0120970
UPC #
786685886091
Country of Origin
Dominican Republic

Dimensions

Height
20.43 in
Depth
10.44 in
Width
8.06 in
Overall Width
11 1/2 in
Overall Height
16 in
Overall Depth
27 in

Details

Start/Stop Control
Automatic, Manual, Programmable
Control Type
Built-In Keypad
Dynamic Braking
Yes
Starting Torque
1.5
Max. HP
15 hp
Enclosure
Open
Key Pad Lockout
Yes
For Use With
3-Phase Inverter Duty Motor
Display Type
LCD
Item
Variable Frequency Drive
Output Phase AC
Three
Input Frequency
60/50 Hz
Input Phase AC
Three
Protection
Incoming Surge, Input Phase Loss, Output Phase Loss, Overcurrent, Overheating, Overload, Overvoltage, Stall, Under Voltage
With Line Contactor / No Line Contactor
No Line Contactor
Accepts Input Control Signal
0-10V DC, 4-20mA
Control Method
Active Energy Control
Displays
LCD Keypad
Input Voltage
240V AC
Output Voltage
240V AC
Digital Readout
Yes
Standards
RoHS, GoST-R, C-Tick, CE, cUL Listed, UL Listed, UL 508C, EN ISO 13849-1, IEC 61508, EN 62061
Max. Output Amps
48 A
With Bypass / No Bypass
No Bypass
Form Factor
0.01 Hz Resolution
Maximum Output Power
15 hp
Application
Industrial General Purpose Drive
Enclosure Rating
NEMA 1
Number of Inputs
(8) Digital Inputs, (2) Analog Input
Input Type
Analog, Digital
Color
White
Output Type
Analog, Digital
Output Frequency Range
0 to 400 Hz
Number of Outputs
(1) Digital Output, (2) Analog Output
Brake Chopper Included
Yes
Torque Application
Constant Torque, Variable Torque
Output Voltage Range
208V AC to 240V AC
Ethernet Port Included
Yes
Input Voltage Range
208 to 240V AC
Series
Power XL Drives
Maximum Output Current
48 A
Style
Industrial High Performance
Output Frequency - Maximum
0 Hz
Includes Brake Chopper
Yes
Input Phase
Three
IP Rating
IP21
Number of Inputs - Digital
8
Line Contactor Design
No Line Contactor
NEMA Rating
NEMA 1
Number of Outputs - Digital
1
Bypass Design
No Bypass
Output Phase
Three
Output Frequency - Minimum
400 Hz
Output Horsepower
15 hp
Number of Inputs - Analog
2
Product Type
Variable Frequency Drive
Number of Outputs - Analog
2
Includes Ethernet Port
Yes
Output Current - Maximum
48 A

Description

Variable Frequency Drive, Input Voltage 240V AC, Input Phase AC Three, Input Frequency 60/50 Hz, Maximum Output Power 15 hp, Maximum Output Current 48 A, Output Voltage 240V AC, Output Phase AC Three, Output Frequency Range 0 to 400 Hz, Enclosure Rating NEMA 1
