  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded
Eaton Wiring Devices Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded TR1877V-BXSP - main

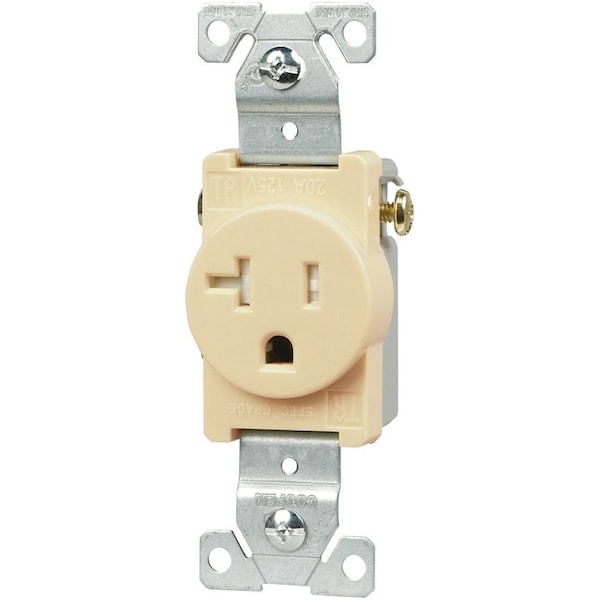

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # TR1877V-BXSP

  • Zoro # G907950832

product price:  $10.59
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TR1877V-BXSP
Zoro #
G907950832
UPC #
32664750229
Country of Origin
China

Dimensions

Height
4.19 IN
Width
.87 IN
Length
1.3 IN

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
NOM, cULus Listed
Resistance Properties
Impact Resistant, Tamper Resistant
Flange Type
Non-Flanged
Material
PVC
Wiring Method
Side
Mounting Type
Flush
Contact Material
Brass
Connection Type
Screw
Style Type
Single
Design Type
Receptacle
Number Of Wires
Three-wire

Description

Meets all UL 498 requirements Triple wire line contacts provide excellent longterm plug retention Arcresistant thermostat face Side wire terminals accept up to 10 solid or stranded wire Terminal screws backed out Tamper resistant receptacles have a UL Listed shutter system 20 amp, 125 volt
