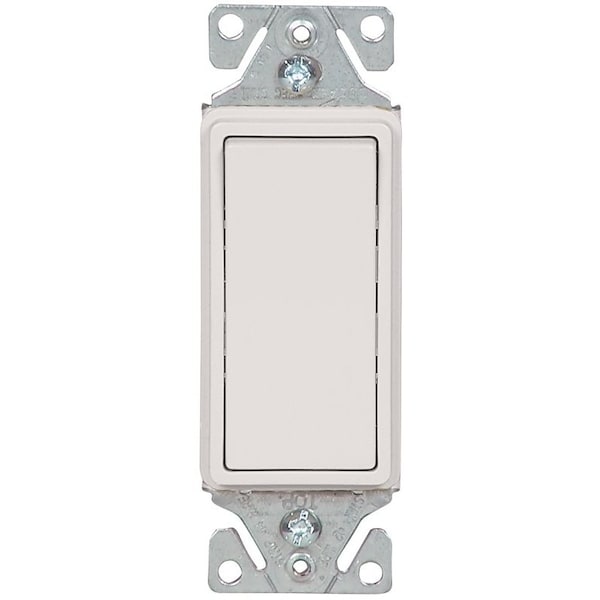

SWITCH QUIET DECR 3WAY 15A WHT
Mfr # 7503W-BOX
Zoro # G307373477
product price:Â
$
8.39
/ea
Key Features
Switch Type
Three-way
Material
Thermoplastic
Color
White
Special Features
Box
Load Type
Motor Control, Fan, LED, Incandescent, ELV,MLV,CFL, Flourescent, Halogen
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 7503W-BOX
- Zoro #
- G307373477
- UPC #
- 32664752414
- Country of Origin
- United States
Dimensions
- Product Length/Depth
- 1.44 IN
- Allowable Wire Size
- #14-12 AWG
- Product Width
- .97 IN
- Product Height
- 4.19 IN
Details
- Switch Type
- Three-way
- Material
- Thermoplastic
- Color
- White
- Special Features
- Box
- Load Type
- Motor Control, Fan, LED, Incandescent, ELV,MLV,CFL, Flourescent, Halogen
- Type
- Switch decorator
- Actuator
- Decorator
- Compliances
- NAFTA
- Amperage Rating
- 15A
- Wiring Method
- Back and push
- Number Of Poles
- Three-way
- Phase
- Single-phase
- Closure Type
- Maintained
- Mounting Type
- Flush
- Voltage Rating
- 120/277 V
- Certifications
- cULus Listed
Description
Ultrasonic welding and integrated construction of the strap and body Backwire clamps on the side terminals for installation of 12 and 14 wire Thermoplastic rocker, top and backbody are virtually unbreakable Screws accept slotted, Phillips and Robertson head tools for installation in both the US and Canada Longer, wider strap provides 40 percent more contact area to wall board Virtually eliminates floating installations Builtin wire stripper for 12 and 14 wire Stippled ground screw standard 15 amp, 120277 volt AC rating for fluorescent lighting fixtures typical in commercial applications Push in terminals accept 14 solid wire only Temperature rating of 20 to 60 degrees C Meets flammability requirements per UL 94, 6504, V2 rated, VO rated UL and cUL Listed, Meets all UL20 requirements
