  9. Compact Blower, Round, 12V DC, Fiberglass Reinforced Plastic, 5 in W.

This item is Discontinued.

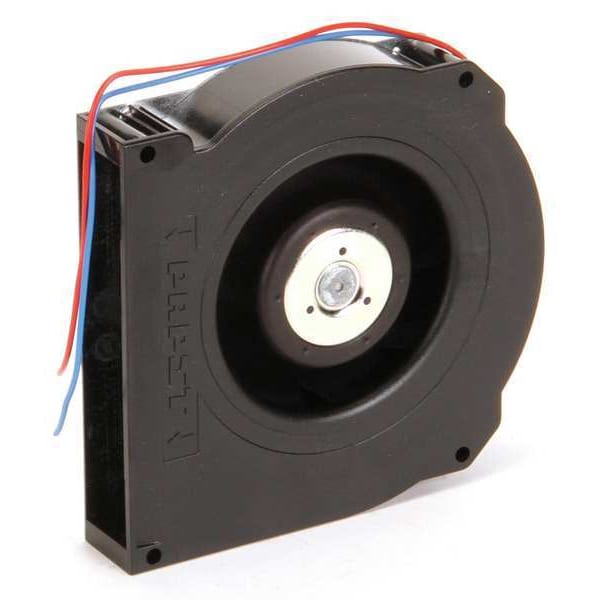

Ebm-Papst Compact Blower, Round, 12V DC, Fiberglass Reinforced Plastic, 5 in W. RLF100-11/12

Compact Blower, Round, 12V DC, Fiberglass Reinforced Plastic, 5 in W. (Discontinued)

  • Mfr # RLF100-11/12
  • Zoro # G3150427
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RLF100-11/12
Zoro #
G3150427
UPC #
-
Country of Origin
Multiple

Dimensions

Depth
1 in
Height
5 in
Width
5 in
Fan Dia.
1"
Fan Depth
1"
Lead Length
12 in

Details

Blade Material
Fiberglass Reinforced Plastic
CFM @ 0.000-In. SP
37.7 cfm
Housing Material
Fiberglass Reinforced Plastic
Shape
Round
Watts
8 W
Voltage
12V DC
Electrical Connection - Fans
Lead Wires
Item
Compact Blower
Standards
VDE
Housing Finish
Black Painted
Bearings
Ball
Fan Watts
8.0
Fan Shape
Round
Thermal Protection
Electronic
Max. Ambient Temp.
167 Degrees F
Amps
0.67 A
dBA
64
Electrical Connections
12.2" Leads AWG 22
Mounting Eye O.C. - Fans
4-1/4" x 3-3/4"
Fan RPM
5100
Motor Type
Brushless DC
Fan Voltage
12VDC
Mounting Eye O.C.
4-1/4 x 3-3/4 in
Mounting Position
Vertical or Horizontal
Motor Insulation
Class E
Fan Item
Flatpack Axial Fan
Fan dBA
64
Color
Black
RPM
5,100 RPM
Bearing Type
Ball
Sound Level
64
Environmental Applications
Equipment Cooling
Type
Flatpack

Description

Compact Blower, Fan Shape Round, 5 in Height, 5 in Width, 1 in Depth, 37.7 cfm CFM @ 0.000-In. SP, Watts 8 W, Voltage 12V DC, 0.67 A Amps, Electrical Connection - Fans Lead Wires, 12 in Lead Length, Sound Level 64 dBA, Mounting Position Horizontal/Vertical, Bearing Type Ball, 5,100 RPM RPM, Motor Insulation E, Thermal Protection Yes, Max. Ambient Temp. 167 Degrees F, Blade Material Fiberglass, Housing Material Fiberglass, Black, Standards VDE, Environmental Applications Equipment Cooling
