  9. Round OEM Blower, 1800 RPM, 1 Phase, Direct Drive, Plastic 4 Speed

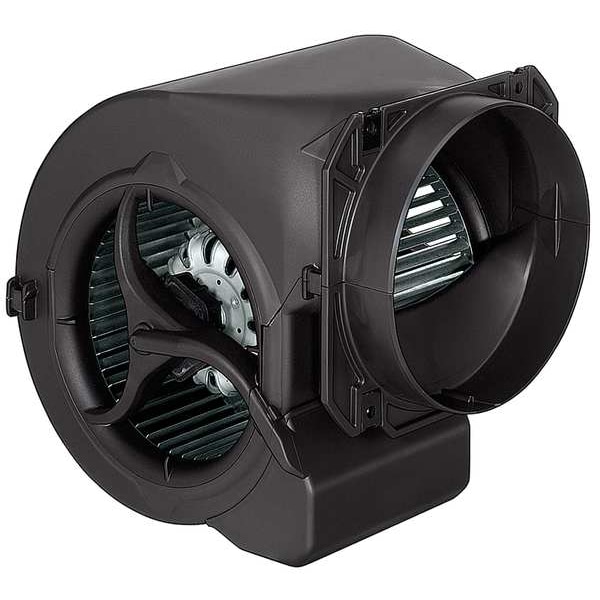

Ebm-Papst Round OEM Blower, 1800 RPM, 1 Phase, Direct Drive, Plastic 4 Speed D2E146-HT65-94 - main

Round OEM Blower, 1800 RPM, 1 Phase, Direct Drive, Plastic 4 Speed

  • Mfr # D2E146-HT65-94

  • Zoro # G1119413

product price: $546.99
/ea
Free Shipping & Returns

Key Features

CFM @ 0.100-In. SP
605
Drive Type
Direct Drive
Full Load Amps
3.20
Housing Material
Plastic
Includes
Run Capacitor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
D2E146-HT65-94
Zoro #
G1119413
UPC #
-
Country of Origin
Germany

Dimensions

Inlet Dia.
5 in
Overall Height
216 mm
Overall Width
220 mm
Blower Wheel Diameter
5 3/4 in
Outlet Height
6 3/8 in
Outlet Width
6 3/4 in
Outlet Dia.
5 7/8 in
Overall Depth
199 mm
Blower Wheel Width
5 3/4 in
Wheel Width
5 3/4 in
Wheel Diameter
5 3/4 in
Inlet Diameter
5 in
Outlet Diameter
5 7/8 in

Details

CFM @ 0.100-In. SP
605
Drive Type
Direct Drive
Full Load Amps
3.20
Housing Material
Plastic
Includes
Run Capacitor
Number of Speeds
4
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Round
With Flange
Yes
Blower Motor Type
Permanent Split Capacitor
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
CFM @ 0.800-In. SP
555
CFM @ 0.000-In. SP
582
CFM @ 0.150-In. SP
600 cfm
Max. Inlet Temp.
122 Degrees F
CFM @ 0.600-In. SP
572
Agency Compliance
UL507 Electric Fans
CFM @ 0.200-In. SP
595
Mounting Position
All Position
CFM @ 1.200-In. SP
527 cfm
CFM @ 0.300-In. SP
590
Motor Insulation
Class F
CFM @ 0.400-In. SP
580
CFM @ 0.500-In. SP
575
Housing Color
Black
CFM @ 0.900-In. SP
551 cfm
Max. Ambient Temp.
122 Degrees F
CFM @ 1.600-In. SP
492 cfm
Housing Finish
Black
Hz
60
Bearing Type
Ball
CFM @ 2.000-In. SP
435
RPM
1800
CFM @ 1.000-In. SP
545 cfm
CFM @ 0.700-In. SP
565
Item
OEM Blower
Wheel Type
Forward-Curved
Maximum Fan Speed
1,800 RPM
Flange Type
Flanged
Assembly
Assembled
Nameplate Voltage
115V AC
Wheel Material
Steel
Minimum Ambient Temperature
-13 Degrees F
Airflow @ 0.400 in SP
580 cfm
Mount Type
Any Position
Airflow @ 0.100 in SP
605 cfm
Maximum Ambient Temperature
104 Degrees F
Airflow @ 0.500 in SP
575 cfm
Outlet Shape
Round
Thermal Overload Protection
Yes
Airflow @ 1.000 in SP
545 cfm
Standards
CSA Certified, UL 507
Wheel Material Finish
Galvanized
Includes Drive Package
Yes
Frequency
60 Hz
Maximum Inlet Air Temperature
122 Degrees F
Airflow @ 2.000 in SP
435 cfm
Motor Type
Permanent Split Capacitor
Minimum Fan Speed
2,000 RPM
Airflow @ 0.000 in SP
582 cfm
Includes Motor
Yes
Rotation
CCW
Motor Speed
1,800 RPM
Maximum Static Pressure
2 1/2 in wc
Electrical Connection
Capacitor Integrated and Connected, Plug
Motor Horsepower
3/5 hp
Current
3.75 A
Airflow @ 0.250 in SP
575 cfm
Motor Insulation Class
F
Number of Inlets
2
Housing Material Finish
Black
Motor IP Rating
IP20
OEM Replacement
No
Voltage
115
Mounting
All Position

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 5 3/4 in, Airflow @ 0.000 in SP 582 cfm, Airflow @ 0.100 in SP 605 cfm, Airflow @ 0.250 in SP 575 cfm, Airflow @ 0.400 in SP 580 cfm, Airflow @ 0.500 in SP 575 cfm, Airflow @ 1.000 in SP 545 cfm, Airflow @ 2.000 in SP 435 cfm

Restrictions

This item has been restricted from sale in the following states: CA
