  11. Back Up Alarm, Black, 3" H
Shop All Automotive Back Up Alarms
Ecco

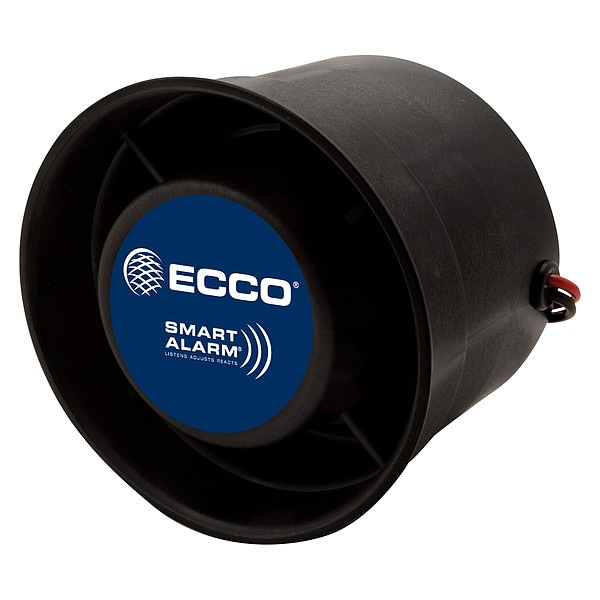

Back Up Alarm, Black, 3" H

product price: $116.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 12 to 24V DC
  • Sound Level 87 to 112dB
  • Current Drawn 0.6A
  • Color Black
  • Housing Material Nylon
See all product information

Product Information

Dimensions

Diameter 4 13/32 in
Length 4 in
Height 3 in
Width 5 in
Overall Height 2 13/16 in
Overall Diameter 4 3/8 in
Overall Width 2 13/16 in
Overall Length 4 3/8 in

Details

Item Vehicle Backup Alarm
Voltage 12 to 24V DC
Sound Level 87 to 112dB
Current Drawn 0.6A
Color Black
Housing Material Nylon
Mounting Grommet
Standards CE, R10
Rating 0.6A
Features Sealed in Epoxy for Protection Against Dust, Moisture and Vibration
Operating Temp. -40 Degrees to 185 Degrees F
Connector Type 16 AWG Blunt Cut Wire
Alarm Type Self-Adjusting
Manufacturer Warranty 5 yr
Alarm Tone Type Tonal
Minimum Sound Level 87 dB
Maximum Sound Level 112 dB
Maximum Operating Temperature 185 Degrees F
Series 400 Series
IP Rating IP64
Mount Type Grommet
Vehicle Class 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Speaker Direction Reverse-Facing
Minimum Operating Temperature -40 Degrees F
Current 0.5 A

Description

Vehicle Backup Alarm, Alarm Type Self-Adjusting, Alarm Tone Type Tonal, Maximum Sound Level 112 dB, Operating Voltage 12-24V DC, Minimum Sound Level 87 dB, Overall Length 4 3/8 in, Overall Width 2 13/16 in, Overall Height 2 13/16 in, SAE Type Rating Not Applicable, Connector Type 16 AWG Blunt Cut Wire, Mount Type Grommet, IP Rating IP64, Series 400 Series, Speaker Direction Reverse-Facing, Vehicle Class 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, Color Black, Housing Material Nylon, Current 0.5 A
