Ecco

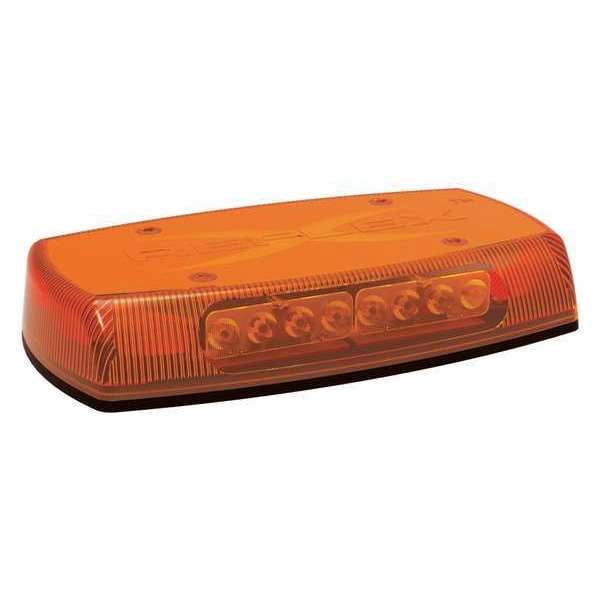

Mini Lightbar, Amber, Permanent, 20 Heads

product price: $330.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Lamp Type Led
  • Voltage 12 to 24V DC
  • Lens Color Amber
  • Lighting Technology - Vehicle Lighting LED
  • Current Drawn 6 A
See all product information

Product Information

Dimensions

Height - Vehicle Lighting 3 in
Width - Vehicle Lighting 10 in
Length - Vehicle Lighting 18 in
Height 2-1/2"
Manufacturers Warranty Length 3 yr
Length 15"
Width 9"
Overall Height 2 1/2 in
Overall Depth 9 in
Overall Length 15 in

Details

Item Mini Light Bar
Lamp Type Led
Voltage 12 to 24V DC
Lens Color Amber
Lighting Technology - Vehicle Lighting LED
Current Drawn 6 A
Color Amber
Number of Flash Patterns - Vehicle Lighting 18
Wiring Connection - Vehicle Lighting Pigtail
Housing Material ASB, Polycarbonate
Mounting 4 Bolt
Lens Color - Vehicle Lighting Amber
Includes Foam Gasket, Lead Wires, Mounting Hardware
Mounting - Vehicle Lighting Permanent
Standards CA T13, CE, R10
Number of Heads 8
Base Material Polycarbonate
Number of LEDs 32
Lens Material Polycarbonate
Flashes per Minute Variable
Flash Type 18 Flash Patterns
Light Type - Vehicle Lighting Flashing
Features 360 Degrees Light Distribution
Rating 6.0A
Operating Temp. -22 Degrees to 122 Degrees F
Material polycarbonate
Power Source Corded
Shape Rectangular
Number of Bulbs 32
Number of Flash Patterns 18
Lighting Technology LED
Light Color Amber
SAE Class Rating SAE J845 Class 1
Minimum Operating Temperature -22 Degrees F
Wattage 77 W
Light Pattern Flashing
Installation Location Roof
Maximum Operating Temperature 122 Degrees F
Series 5590 Reflex Series
IP Rating IP69K
Current 6 A
Vehicle Class 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Compatible Vehicle Type Universal
Mount Type Bolt
Installation Type Permanent
Electrical Connection Blunt Cut Wires
Wire Exit Bottom
Manufacturer Warranty 5 yr
Light Type Mini Light Bar
Mount Style Surface

Description

Mini Light Bar, Light Type Mini Light Bar, Light Color Amber, Wattage 77 W, Lens Color Amber, Shape Rectangular, Light Pattern Flashing, SAE Class Rating SAE J845 Class 1, Electrical Connection Blunt Cut Wires, Lighting Technology LED, Installation Type Permanent, Operating Voltage 12-24V DC, Overall Length 15 in, Overall Diameter Not Applicable, Overall Height 2 1/2 in, Overall Depth 9 in, IP Rating IP69K, Compatible Vehicle Type Universal, Number of Heads 8
