  11. Mini Lightbar, LED, Amber/Clear, Permanent
Shop All Automotive Back Up Alarms
Ecco

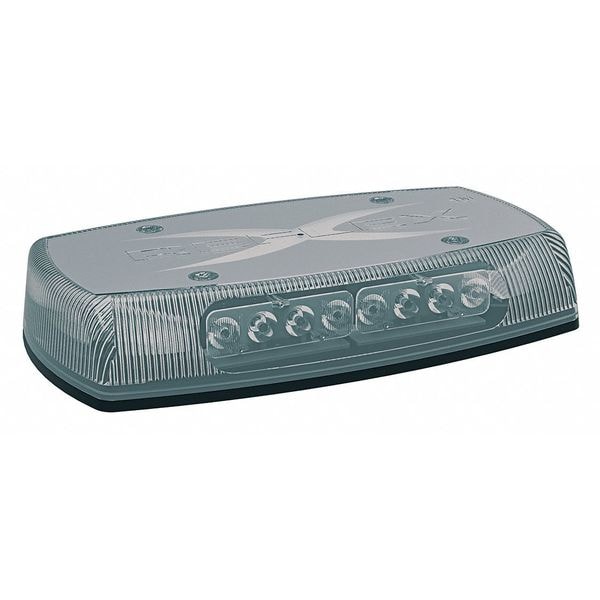

Mini Lightbar, LED, Amber/Clear, Permanent

product price: $299.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 12 to 24V DC
  • Lamp Type Amber, Clear LED
  • Lens Color Clear
  • Lighting Technology - Vehicle Lighting LED
  • Color Amber,Clear LED/Clear Lens
See all product information

Product Information

Dimensions

Height - Vehicle Lighting 3 in
Width - Vehicle Lighting 10 in
Length - Vehicle Lighting 18 in
Width 9"
Manufacturers Warranty Length 3 yr
Height 2-1/2"
Length 15"
Overall Height 2 1/2 in
Overall Depth 9 in
Overall Length 15 in

Details

Item Mini Light Bar
Voltage 12 to 24V DC
Lamp Type Amber, Clear LED
Lens Color Clear
Lighting Technology - Vehicle Lighting LED
Color Amber,Clear LED/Clear Lens
Current Drawn 6 A
Number of Flash Patterns - Vehicle Lighting 18
Wiring Connection - Vehicle Lighting Pigtail
Housing Material ASB, Polycarbonate
Lens Color - Vehicle Lighting Amber
Mounting 4 Bolt
Mounting - Vehicle Lighting Permanent
Includes Foam Gasket, Lead Wires, Mounting Hardware
Standards CE, R10
Number of Heads 8
Light Type - Vehicle Lighting Flashing
Number of LEDs 32
Flash Type 18 Flash Patterns
Lens Material Polycarbonate
Flashes per Minute Variable
Base Material Polycarbonate
Features 360 Degrees Light Distribution
Rating 6.0A
Material polycarbonate
Operating Temp. -22 Degrees to 122 Degrees F
Lighting Technology LED
Number of Flash Patterns 18
Shape Rectangular
Number of Bulbs 32
Power Source Corded
Installation Location Roof
Wattage 77 W
Light Color Amber/White
Electrical Connection Blunt Cut Wires
Vehicle Class 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Series 5590 Reflex Series
Light Type Mini Light Bar
Compatible Vehicle Type Universal
Maximum Operating Temperature 122 Degrees F
Current 6 A
Manufacturer Warranty 5 yr
IP Rating IP69K
Minimum Operating Temperature -22 Degrees F
Light Pattern Flashing
SAE Class Rating SAE J845 Class 1
Wire Exit Bottom
Installation Type Permanent
Mount Type Bolt
Mount Style Surface

Description

Mini Light Bar, Light Type Mini Light Bar, Light Color Amber/White, Wattage 77 W, Lens Color Clear, Shape Rectangular, Light Pattern Flashing, SAE Class Rating SAE J845 Class 1, Electrical Connection Blunt Cut Wires, Lighting Technology LED, Installation Type Permanent, Operating Voltage 12-24V DC, Overall Length 15 in, Overall Diameter Not Applicable, Overall Height 2 1/2 in, Overall Depth 9 in, IP Rating IP69K, Compatible Vehicle Type Universal, Number of Heads 8
