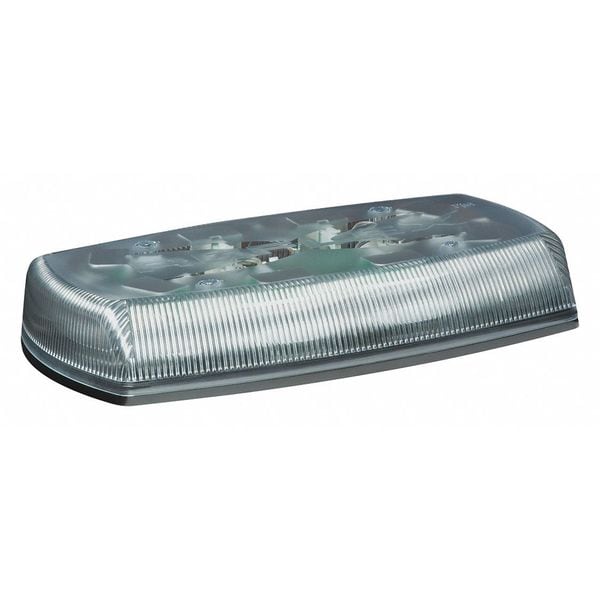

Mini Lightbar, LED, Permanent, 8 Heads

  • Mfr # 5580CA

  • Zoro # G4884531


product price: $278.99
/ea
Free Shipping & Returns

Key Features

Color
Amber LED/Clear Lens
Includes
Foam Gasket, Lead Wires, Mounting Hardware
Length - Vehicle Lighting
15 in
Voltage
12-24V DC
Light Type - Vehicle Lighting
Flashing
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5580CA
Zoro #
G4884531
UPC #
-
Country of Origin
Viet Nam

Dimensions

Length - Vehicle Lighting
15 in
Height - Vehicle Lighting
3 in
Manufacturers Warranty Length
3 yr
Height
2-1/2"
Length
15"
Width - Vehicle Lighting
9 in
Width
9"
Overall Height
2 1/2 in
Overall Depth
9 in
Overall Length
15 in

Details

Item
Mini Light Bar
Color
Amber LED/Clear Lens
Includes
Foam Gasket, Lead Wires, Mounting Hardware
Voltage
12-24V DC
Light Type - Vehicle Lighting
Flashing
Lens Color - Vehicle Lighting
Amber
Lighting Technology - Vehicle Lighting
LED
Number of LEDs
16
Mounting - Vehicle Lighting
Permanent
Wiring Connection - Vehicle Lighting
Pigtail
Base Material
Polycarbonate
Number of Flash Patterns - Vehicle Lighting
18
Standards
CE, R10, RoHS Compliant
Lamp Type
Led
Lens Material
Polycarbonate
Current Drawn
2.7 A
Flash Type
18 Flash Patterns
Flashes per Minute
Variable
Number of Heads
8
Housing Material
ASB, Polycarbonate
Mounting
4 Bolt
Lens Color
Clear
Rating
2.7A
Operating Temp.
-22 Degrees to 122 Degrees F
Material
polycarbonate
Lighting Technology
LED
Power Source
Corded
Number of Flash Patterns
18
Shape
Rectangular
Number of Bulbs
24
Electrical Connection
Blunt Cut Wires
Mount Type
Bolt
Compatible Vehicle Type
Universal
Mount Style
Surface
Light Color
Amber
Wire Exit
Bottom
Installation Location
Roof
IP Rating
IP69K
Vehicle Class
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Manufacturer Warranty
5 yr
Wattage
35.1 W
Light Pattern
Flashing
Light Type
Mini Light Bar
Series
5580 Reflex Series
Installation Type
Permanent
Current
2.7 A
SAE Class Rating
SAE J845 Class 2
Minimum Operating Temperature
-22 Degrees F
Maximum Operating Temperature
122 Degrees F
Operating Voltage
12-24V DC

Description

Mini Light Bar, Light Type Mini Light Bar, Light Color Amber, Wattage 35.1 W, Lens Color Clear, Shape Rectangular, Light Pattern Flashing, SAE Class Rating SAE J845 Class 2, Electrical Connection Blunt Cut Wires, Lighting Technology LED, Installation Type Permanent, Operating Voltage 12-24V DC, Overall Length 15 in, Overall Diameter Not Applicable, Overall Height 2 1/2 in, Overall Depth 9 in, IP Rating IP69K, Compatible Vehicle Type Universal, Number of Heads 8
