Shop EDWARDS SIGNALING

Bell, Bell, Continuous, 6V DC, 83 dB, Steel, Gray, Wall Mount

  • Mfr # 435EX-6C1

  • Zoro # G5764972

product price:
$
1,510.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Steel
Mounting
Wall
Amps
1.52A
Diameter
6 in
Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
435EX-6C1
Zoro #
G5764972
UPC #
782640002322
Country of Origin
Mexico

Dimensions

Diameter
6 in
Height
7 in
Depth
5 in
Overall Depth
4 13/16 in
Overall Diameter
6 in

Details

Item
Bell
Housing Material
Steel
Mounting
Wall
Amps
1.52A
Color
Gray
Audible Alarm Type
Bell
Voltage
6V DC
Standards
UL Listed
Indoor/Outdoor
Indoor
Decibels
83 dB
Sound Pattern
Continuous
Visual Indicator Type
No Visual Indicator
Hazardous Class
I, II, III
Hazardous Division
1, 2
Vibrating
Yes
Power Source
Wire
Features
Completely Assembled, Weatherproof
Material
Steel
Product Type
Bell
Rating
NEMA 4
Sound Style
Bell
Number of Sound Patterns
1
Alarm Volume @ 1 m - Maximum
93 dB
Sound Principle
Vibrating
Sound Continuity
Continuous
Vibration
Vibrating
Mounting Style
Surface Mount
Connection Type
Wire Leads
Operating Current
1.520 A
For Location
Outdoor
Alarm Volume @ 10 ft - Maximum
83 dB
NEMA Rating
NEMA 4
IP Rating
NEMA 4
Operating Voltage
6V DC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

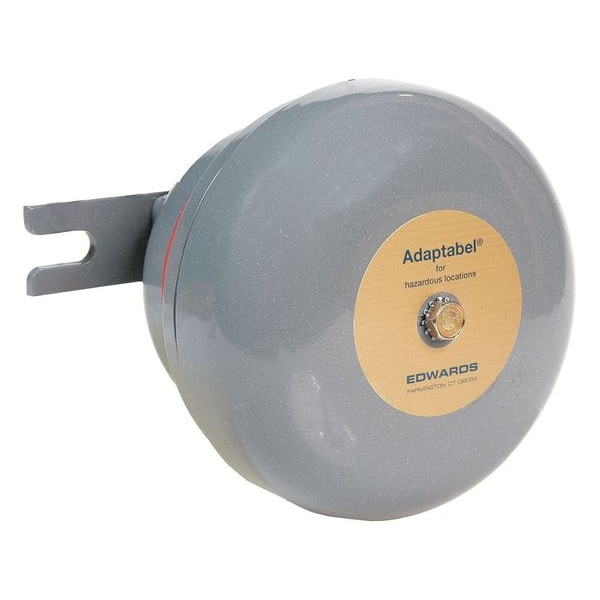

EDWARDS SIGNALING 435EX-6C1 is a continuous vibrating bell for audible signaling. It is rated for 6V DC operation and has a sound output rating of 83 dB at 10 ft, with a maximum sound level of 93 dB at 1 m. The unit features a gray steel housing, comes completely assembled, and has a NEMA 4-rated enclosure for wall-mounted surface installation in indoor or outdoor locations.

Key Features:

  • Audible alarm type: Bell with continuous sound pattern
  • Sound output: 83 dB at 10 ft maximum; 93 dB at 1 m maximum
  • Operating voltage: 6V DC
  • Operating current: 1.520 A
  • Construction: Steel housing
  • Mounting: Wall mount, surface mount
  • Connection type: Wire leads
  • Protection rating: NEMA 4
  • Location rating: Indoor and outdoor
  • Hazardous class/division: Class I, II, III; Division 1, 2
  • Visual indicator type: None
  • Standards: UL Listed
  • Size: 6 in. diameter, 5 in. depth, 7 in. height
