Shop EDWARDS SIGNALING

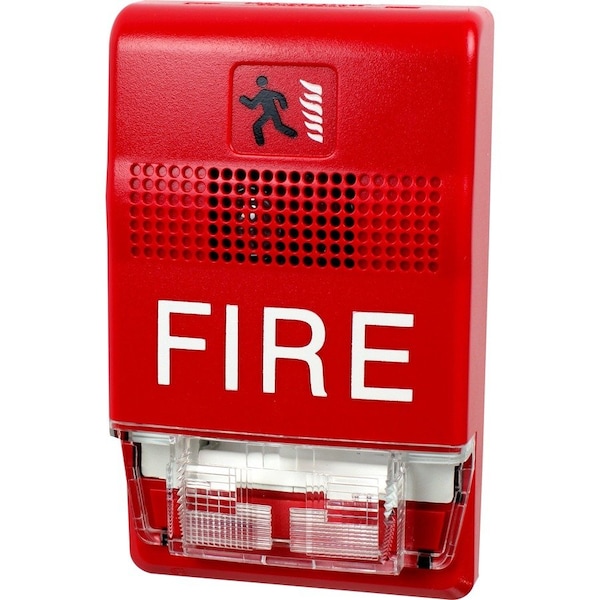

Chime Strobe, Marked Fire, Red

  • Mfr # EG1RF-CVM

  • Zoro # G4391563

product price:  $157.99
/ea
Free Shipping & Returns

Key Features

Type
Marked Fire
Standards
CSFM Compliant, UL Listed, ULC Listed
Mounting
Flush or Surface
Voltage
16 to 33V DC
Finish
Red
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EG1RF-CVM
Zoro #
G4391563
UPC #
782640680407
Country of Origin
China

Dimensions

Depth
0.8"
Width
2.8"
Overall Length
4 1/2 in
Overall Width
2 3/4 in
Overall Depth
13/16 in
Wire Rope Length
4 1/2 in

Details

Item
Chime Strobe
Type
Marked Fire
Standards
CSFM Compliant, UL Listed, ULC Listed
Mounting
Flush or Surface
Voltage
16 to 33V DC
Finish
Red
Peak Output (dBA)
78.6 dBA
Ambient Temp. Limits (F)
32 Degrees to 120 Degrees F
Alarm Current
154 to 383mA FWR, 99 to 277mA DC
Humidity Range (% RH)
93% RH
Flash (Candela)
15/30/75/110 cd
Product Type
Chime and Strobe
Application
Signaling
Features
Textured Housing
Operating Temperature - Minimum
32 Degrees F
Light Operating Mode
Strobe
Sound Style
Tone
Power Source
Wire
Legend
FIRE
Operating Temperature - Maximum
120 Degrees F
Light Source
Xenon
Alarm Volume @ 1 m - Maximum
71 dB
Mounting Style
Flush Mount, Surface Mount
Lens Color
Clear
Housing Material
Plastic
Light Intensity
15 cd, 30 cd, 75 cd, 110 cd
Alarm Volume @ 10 ft - Maximum
66 dB
Housing Color
Red
Control Protocol
Direct Wire
Flashes per Minute
60
Operating Voltage
16 to 33V DC
Power Source - TS Only
Wire

Description

Chime Strobe, Marked Fire, Finish Red, Flush or Surface Mounting, Alarm Current 99 to 277mA DC, 154 to 383mA FWR, Peak Output (dBA) 78.6, Flash (Candela) 15/30/75/110, Depth (In.) 13/16, Height (In.) 4-1/2, Length (In.) 2-3/4, Ambient Temp. Limits (F) 32 to 120, Humidity Range ( Percent RH) 93, Voltage 24VDC, FWR, Standards UL, ULC, CSFM
