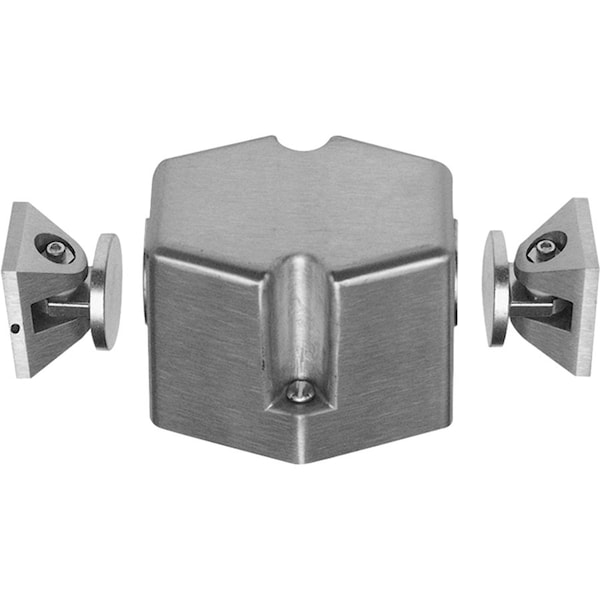

Electromagnetic Door Holder, L 4 7/8 In
- Mfr # 1502-AQN5
- Zoro # G1248624
product price:Â
$
207.99
/ea
Free Shipping & Returns
Key Features
Finish
Powder Epoxy Aluminum
Material
Die Cast Metal
Color
Aluminum
Includes
Mounting hardware
Power Required
0.15A @ 120V AC, 0.15A @ 24V AC/DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1502-AQN5
- Zoro #
- G1248624
- UPC #
- 782640269626
- Country of Origin
- Mexico
Dimensions
- Lock Body Width
- 4 5/8 in
- Lock Body Depth
- 3 1/4 in
- Lock Body Length
- 3 1/4 in
- Strike Plate Thickness
- 1 5/8 in
Details
- Item
- Electromagnetic Door Holder
- Finish
- Powder Epoxy Aluminum
- Material
- Die Cast Metal
- Color
- Aluminum
- Includes
- Mounting hardware
- Power Required
- 0.15A @ 120V AC, 0.15A @ 24V AC/DC
- Holding Force
- 25 to 50 lb
- Total Projection
- 6-1/2 in
- Projection from Wall
- 4 7/8 in
- Standards
- CSFM Listed, FM Approved, UL Listed
- Voltage
- 120V AC, 24V AC/DC
- Failure Mode
- Fail Safe
- Power Source
- AC Power, DC Power
- ANSI/BHMA Finish
- Aluminum Painted
- Holding Force - Maximum
- 25 lb
- Projection
- 6 1/2 in
- Power Source - TS Only
- AC Power, DC Power
- Power Source - old
- AC Power, DC Power
Description
Electromagnetic Door Holder, Floor Mount, Double Door-, Amp Draw @ 12V -, Amp Draw @ 24V 0.015 AC/DC, Input Voltage 120VAC, 24 VAC/DCTotal Projection (In.) 6-1/2, Holding Force (Lb.) 25 to 50, Armature Length (In.) 1-5/8, Armature Width (In.) 2-1/4, Armature Depth (In.) 2-1/4, Lock Body Length (In.) 4-7/8, Lock Body Width (In.) 4-5/8, Lock Body Depth (In.) 3-1/4- Release Delay, Powder Epoxy Aluminum Finish, Standards UL Listed, FM Approved, Options Included -, For Use With -
