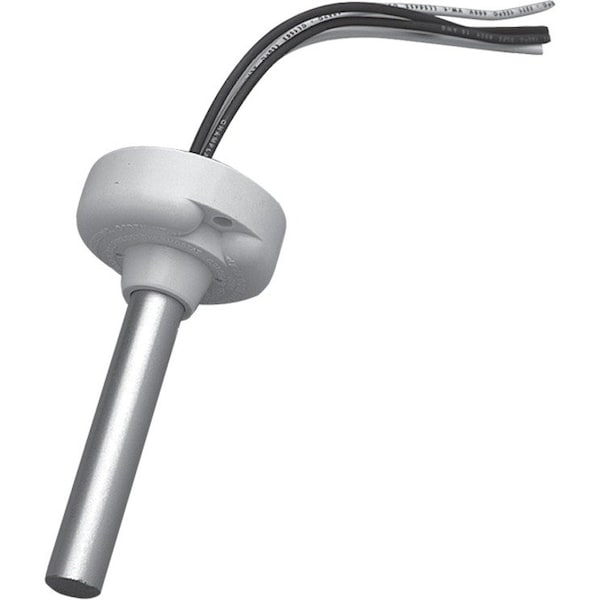

Heat Detector, Coverage 2500 Sq. Ft.
- Mfr # 302-AW-135
- Zoro # G6532653
product price:Â
$
55.55
/ea
Key Features
Power Source
Hardwired
Overall Height
4.13 in
Maximum Operating Temperature
100 Degrees F
Standards
MEA, UL
Finish
Silver/White
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 302-AW-135
- Zoro #
- G6532653
- UPC #
- 793017005303
- Country of Origin
- United States
- Item
- Heat Detector
- Power Source
- Hardwired
- Maximum Operating Temperature
- 100 Degrees F
- Standards
- MEA, UL
- Finish
- Silver/White
- Ambient Temp. Limits (F)
- -40 Degrees to 100 Degrees F
- Type
- Rate Compensation
- Color
- Gray, White
- Minimum Operating Temperature
- -40 Degrees F
- Detects
- Heat
- Coverage Area
- 2,500 sq ft
- Mount Type
- Surface
- Receiver Range
- 2,500 sq ft
- Shape
- Round
- Detector Type
- Heat Detector
- Resistance Properties
- Corrosion Resistant, Shock Resistant, Tamper Resistant
- Current Rating
- 0.5 A @ 125V AC, 1 A @ 6 to 25V DC, 5 A @ 6 to 125V AC
- Voltage Rating
- 125V DC, 6 to 25V AC, 6 to 25V DC
- Sensor Type
- Mechanical
- Environment
- Indoor, Outdoor
- Power Source - TS Only
- Hardwired
- Power Source - old
- Hardwired
- Wire Color
- Gray, White
Dimensions
- Overall Height
- 4.13 in
- Depth
- 2 1/16 in
- Length
- 2 1/16 in
- Outside Diameter
- 2.06 in
Description
Heat Detector, Rate Compensation, Finish Silver/White, Surface Mounting, Depth (In.) 2-1/16, Height (In.) 4-1/8, Length (In.) 2-1/16, Ambient Temp. Limits (F) -40 to 100 Degrees , Coverage (Square-Ft.) 2500, Standards UL, CSFM
