  11. Outdoor Speaker Strobe, Marked Fire, Red

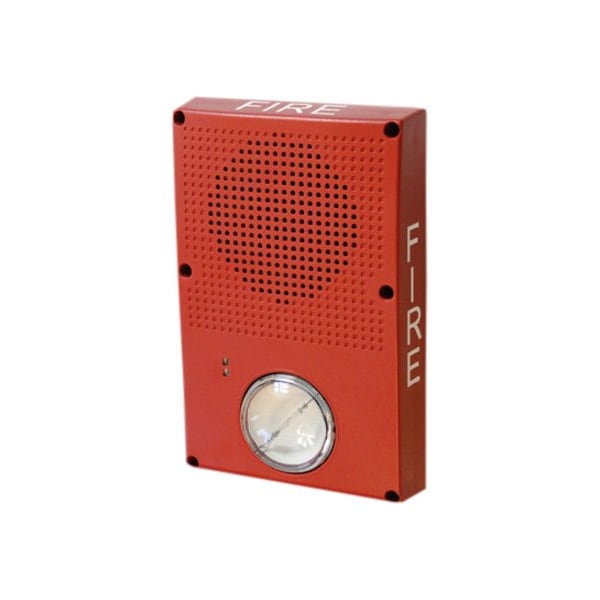

Edwards Signaling Outdoor Speaker Strobe, Marked Fire, Red WG4RF-SVMC - main

Outdoor Speaker Strobe, Marked Fire, Red

  • Mfr # WG4RF-SVMC

  • Zoro # G6891936

product price: $194.99
/ea
Free Shipping & Returns

Key Features

Type
Marked Fire
Standards
CSFM, UL, ULC
Mounting
Flush or Surface
Voltage
24 V DC, 25/70 V
Flash (Candela)
15/29/70/87 cd
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WG4RF-SVMC
Zoro #
G6891936
UPC #
793017006348
Country of Origin
China

Dimensions

Overall Width
5.63 in
Overall Height
8.5 in
Overall Depth
2.25 in

Details

Item
Speaker Strobe
Type
Marked Fire
Standards
CSFM, UL, ULC
Mounting
Flush or Surface
Voltage
24 V DC, 25/70 V
Flash (Candela)
15/29/70/87 cd
Finish
Red
Alarm Current
106 to 319mA DC, 120 to 386mA FWR
Peak Output (dBA)
81/84/87/90 dBA
Ambient Temp. Limits (F)
-31 Degrees to 150 Degrees F
Humidity Range (% RH)
95% RH
Product Type
Speaker Strobe
Application
Emergency, Indoor, Signaling, Outdoor
Legend
FIRE
Light Operating Mode
Strobe
Operating Temperature - Minimum
-31 Degrees F
Visual Indicator Type
Strobe
Housing Color
Red
Operating Temperature - Maximum
150 Degrees F
Sound Level
81 dBA, 84 dBA, 87 dBA, 90 dBA
Environment
Outdoor
Light Output
15 cd, 29 cd, 70 cd, 87 cd
Current
106 to 319 mA DC, 120 to 386 mA FWR
Sensitivity (dB)
90 dB

Description

Outdoor Speaker Strobe, Fire Marking, Finish Red, Flush or Surface Mounting, Alarm Current 106 to 319mA DC, 120 to 386mA FWR, Peak Output (dBA) 81/84/87/90, Flash (Candela) 15/29/70/87, Depth (In.) 2-1/4, Height (In.) 8-1/2, Length (In.) 5.625, Ambient Temp. Limits (F) -31 to 150, Humidity Range ( Percent RH) 95, Voltage Speaker: 25 or 70Vrms; Strobe: 24VDC, FWR, Standards UL, ULC, CSFM
