Shop EDWARDS SIGNALING

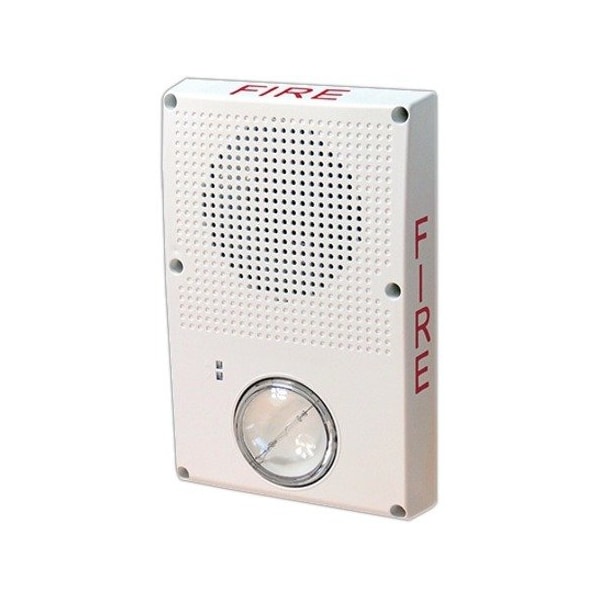

Outdoor Speaker Strobe, Marked Fire, White

  • Mfr # WG4WF-SVMHC

  • Zoro # G6669415

product price:  $195.99
/ea
Free Shipping & Returns

Key Features

Type
Marked Fire
Standards
CSFM, UL, ULC
Mounting
Flush or Surface
Indoor/Outdoor
Indoor
Voltage
24 V DC, 25/70 V
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
WG4WF-SVMHC
Zoro #
G6669415
UPC #
793017006478
Country of Origin
China

Dimensions

Overall Depth
2.25 in
Overall Width
5.63 in
Overall Height
8.5 in

Details

Item
Speaker Strobe
Type
Marked Fire
Standards
CSFM, UL, ULC
Mounting
Flush or Surface
Indoor/Outdoor
Indoor
Voltage
24 V DC, 25/70 V
Ambient Temp. Limits (F)
-31 Degrees to 150 Degrees F
Alarm Current
324 to 495mA DC, 412 to 646mA FWR
Humidity Range (% RH)
95% RH
Flash (Candela)
102/123/147/161 cd
Finish
White
Peak Output (dBA)
81/84/87/90 dBA
Product Type
Speaker Strobe
Operating Temperature - Maximum
150 Degrees F
Housing Color
White
Legend
FIRE
Environment
Outdoor
Light Operating Mode
Strobe
Visual Indicator Type
Strobe
Current
324 to 495 mA DC, 412 to 646 mA FWR
Operating Temperature - Minimum
-31 Degrees F
Sound Level
81 dBA, 84 dBA, 87 dBA, 90 dBA
Light Output
102 cd, 123 cd, 147 cd, 161 cd

Description

Outdoor Speaker Strobe, Fire Marking, Finish White, Flush or Surface Mounting, Alarm Current 324 to 495mA DC, 412 to 646mA FWR, Peak Output (dBA) 81/84/87/90, Flash (Candela) 102/123/147/161, Depth (In.) 2-1/4, Height (In.) 8-1/2, Length (In.) 5.625, Ambient Temp. Limits (F) -31 to 150, Humidity Range ( Percent RH) 95, Voltage Speaker: 25 or 70Vrms; Strobe: 24VDC, FWR, Standards UL, ULC, CSFM
