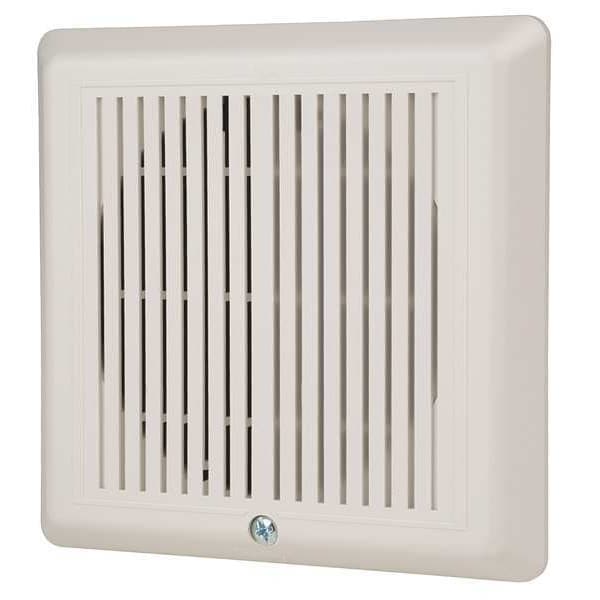

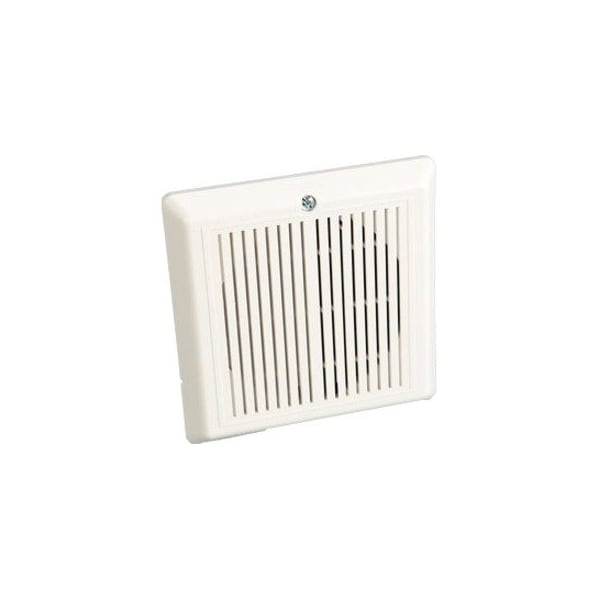

Edwards Signaling Temporal Horn, White 2447TH-W - main

Temporal Horn, White

  • Mfr # 2447TH-W

  • Zoro # G4390391

product price: $63.15
/ea

Key Features

Standards
CE, FM Approved, MEA, UL Listed, ULC Listed
Mounting
Surface or Flush
Voltage
24V
Humidity Range (% RH)
98% RH
Alarm Current
40mA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
2447TH-W
Zoro #
G4390391
UPC #
782640090022
Country of Origin
China

Dimensions

Overall Depth
5/8 in
Overall Width
5 1/2 in
Overall Length
5 1/2 in

Details

Item
Temporal Horn
Standards
CE, FM Approved, MEA, UL Listed, ULC Listed
Mounting
Surface or Flush
Voltage
24V
Humidity Range (% RH)
98% RH
Alarm Current
40mA
Finish
White
Peak Output (dBA)
85 dBA
Ambient Temp. Limits (F)
-40 Degrees to 150 Degrees F
Product Type
Horn
Application
Outdoor, Indoor
Operating Current
0.04 A, 0.55 A
For Location
Indoor, Outdoor
Alarm Volume @ 1 m - Maximum
95 dB
Mounting Style
Flush Mount
Alarm Volume @ 1 m - Minimum
92 dB
Alarm Volume @ 10 ft - Maximum
85 dB
Sound Style
Horn
Features
Flash Rate 60 fpm, Xenon Strobe Light Source
Alarm Volume @ 10 ft - Minimum
82 dB
Operating Temperature - Maximum
150 Degrees F
Material
Plastic
Power Source
Wire
Connection Type
Screw Terminal
Operating Temperature - Minimum
-31 Degrees F
Color
White
Operating Voltage
24V
Indoor/Outdoor
Outdoor
Enclosure Color
White
Enclosure Material
Thermoplastic

Description

Voltage 24V DC, FWR, Mounting Surface or Flush, Features Flash Rate 60 fpm, Xenon Strobe Light Source, Standards CE, FM Approved, MEA, UL Listed, ULC Listed, Color White, Temporal Horn
