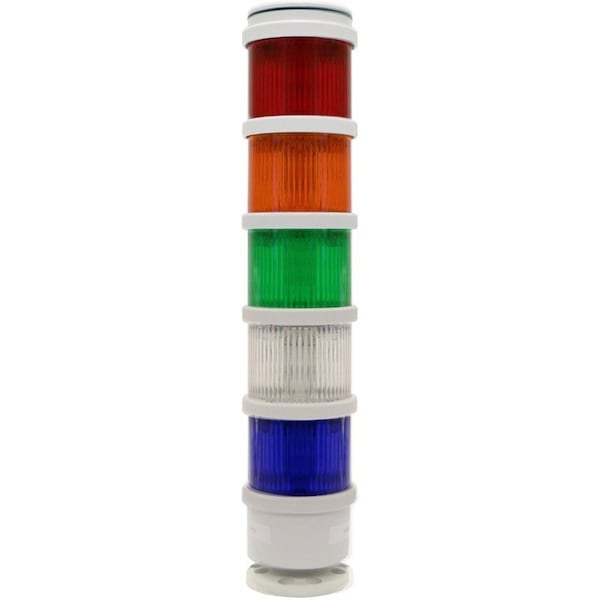

Tower Light Module, 24V AC, 24V DC, White, 70 mm Dia., 3 1/8 in Height, LED, 270BC Series

  • Mfr # 270LEDMW24AD

  • Zoro # G5762626


product price:  $189.99
/ea
Free Shipping & Returns

Key Features

Standards
CE Approved, cULus Listed
Voltage
24V AC, 24V DC
Overall Diameter
70 mm
Housing Material
Polycarbonate
Lighting Technology
LED
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
270LEDMW24AD
Zoro #
G5762626
UPC #
782640325902
Country of Origin
Italy

Dimensions

Overall Diameter
70 mm
Overall Height
3 1/8 in
Height
3.11 in
Width
2.83 in
Diameter
70 mm

Details

Item
Tower Light Module
Standards
CE Approved, cULus Listed
Voltage
24V AC, 24V DC
Housing Material
Polycarbonate
Lighting Technology
LED
Current Drawn
0.075A AC, 0.065A DC
Includes
Gasket
Flashes per Minute
75, 85
Color
White
Lens Material
Polycarbonate
Tower Light Series
270BC
For Use With
200 Class 70mm Stacklight(TM)
Lamp Type
Led
Rating
UL
NEMA Rating
NEMA 3R, NEMA 4X
Mounting
Base
Lens Design
Simple
Tower Light Color
White
Lamp Life
100,000 hr
Operating Temp.
-22 Degrees to 122 Degrees F
Light Color
White
Operating Voltage
24V AC, 24V DC
Light Operating Mode
Flashing, Steady
For Location
Indoor, Outdoor
Operating Temperature - Minimum
-22 Degrees F
Lens Shape
Dome
Lifespan
100,000 hr
Light Source
LED
IP Rating
IP54, IP65
Housing Color
Gray
Compatible Series
200 Class
Operating Temperature - Maximum
122 Degrees F
Operating Current
0.065 A @ 24V DC, 0.075 A @ 24V AC

Description

Tower Light Series 270BC, Voltage 24V AC/DC, Tower Light Color White, Diameter 70 mm, NEMA Rating NEMA 3R, NEMA 4X, Lighting Technology LED, 75, 85 Flashes per Minute, Lamp Life 100,000 hr, Housing Material Polycarbonate, Lens Design Simple, Lens Material Polycarbonate, Operating Temp. -22 Degrees to 122 Degrees F, Standards CE Approved, cULus Listed, Current Drawn 0.075A AC, 0.065A DC, Height 3.11 in, Width 2.83 in, For Use With 200 Class 70mm Stacklight(TM), Includes Gasket
