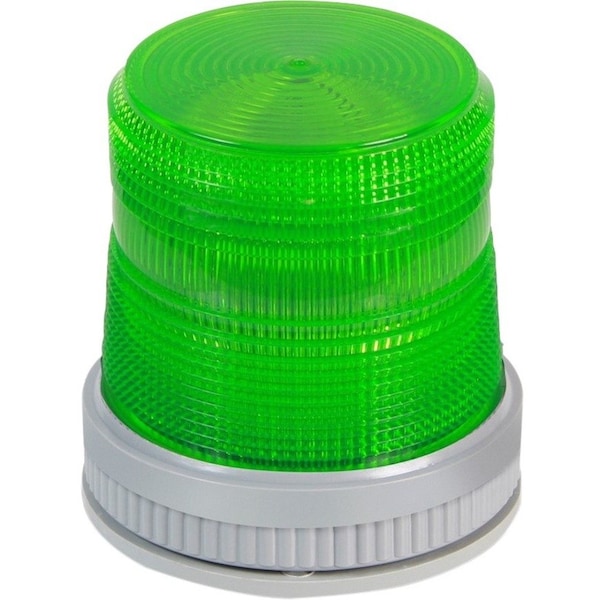

Warning Light, Green, LED, 24V DC, 65 FPM, 3 3/4 in Dia., Surface

  • Mfr # 105XBRMG24D

  • Zoro # G5552111


product price: $429.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
LED
Power Source
Wire
Lamp Life
148,000 hr
Lens Material
Polycarbonate
Flashes per Minute
65
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
105XBRMG24D
Zoro #
G5552111
UPC #
782640052242
Country of Origin
United States

Dimensions

Height
4 3/4 in
Overall Diameter
3 3/4 in
Diameter
3 3/4 in
Depth
3.8"
Width
3.8"
Footprint Diameter
3 3/4 in
Overall Depth
4 3/4 in
Lead Length
18 in

Details

Item
Warning Light
Color
Green
Lamp Type
LED
Power Source
Wire
Lamp Life
148,000 hr
Lens Material
Polycarbonate
Flashes per Minute
65
Housing Material
Glass Reinforced Thermoplastic Polyester Resin
Standards
cUL, UL
Features
Shatter Resistant
Voltage
24V DC
Mounting
Surface
Current Drawn
0.215A DC
Rating
UL Class 1 Div 2, Groups A,B,C, D, Class II Div 2, Groups F, G, Class III
For Use With
Industrial, Outdoor, Marine
Lens Design
Fresnel
Product Type
Warning Light
Connection Type
Wire Leads
Material
Glass Reinforced Thermoplastic Polyester Resin, Polyethylene Terephthalate (PET)
Tower Light Color
Green
Audible Alarm Type
Visual
NEMA Rating
NEMA 4X
Lifespan
148,000 hr
Operating Temperature - Maximum
212 Degrees F
Light Operating Mode
Flashing, Steady
For Location
Indoor, Outdoor
Includes Mounting Hardware
No Mounting Hardware
Mounting Mechanism
3/4 in NPT
Vibration
No Vibration
Lamp Color
Green
Lens Color
Green
Operating Temperature - Minimum
-31 Degrees F
Mounting Style
Surface Mount
Requires Base
Base Required
For Hazardous Location
Class I, Division 2, Class II, Division 2, Class III
Housing Color
Gray
IO-Link Compatibility
Not IO-Link Compatible
Control Protocol
Direct Wire
Operating Current
0.215 A
Light Source
LED
Operating Voltage
24V DC

Description

Warning Light, Color Green, Lamp Type LED, Flashes per Minute 65, Lamp Life 148,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Glass Reinforced Thermoplastic Polyester Resin, Mounting Surface, Rating UL Class 1 Div 2, Groups A,B,C, D, Class II Div 2, Groups F, G, Class III, Power Source Wire, Current Drawn 0.215A DC, Height 4 3/4 in
