  11. Warning Light, Red, (6) LED, 120V AC, 65 FPM, 4 9/32 in Dia., Panel/Conduit

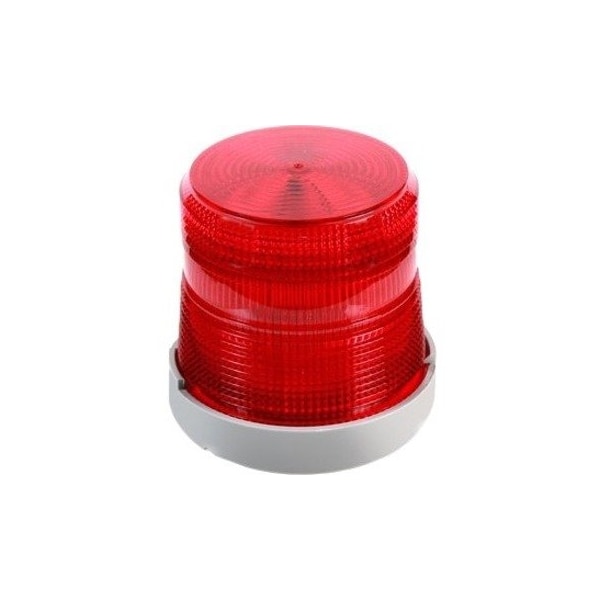

Edwards Signaling Warning Light, Red, (6) LED, 120V AC, 65 FPM, 4 9/32 in Dia., Panel/Conduit 48XBRMR120A - main

Warning Light, Red, (6) LED, 120V AC, 65 FPM, 4 9/32 in Dia., Panel/Conduit

  • Mfr # 48XBRMR120A

  • Zoro # G6178977

product price: $352.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
(6) LED
Power Source
Wire
Lamp Life
148,000 hr
Lens Material
Polycarbonate
Flashes per Minute
65
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
48XBRMR120A
Zoro #
G6178977
UPC #
782640052471
Country of Origin
United States

Dimensions

Height
4 21/100 in
Overall Diameter
4 9/32 in
Diameter
4 7/25 in
Depth
4 7/25 in
Width
4 7/25 in
Overall Depth
4 7/32 in
Footprint Diameter
4 1/4 in
Lead Length
18 in

Details

Item
Warning Light
Color
Red
Lamp Type
(6) LED
Power Source
Wire
Lamp Life
148,000 hr
Lens Material
Polycarbonate
Flashes per Minute
65
Housing Material
ABS, Polycarbonate
Standards
cUL, UL
Features
Shatter Resistant
Voltage
120V AC
Current Drawn
0.108 A AC
Mounting
Panel/Conduit
Operating Temp.
-31 Degrees to 150 Degrees F
Lens Design
Snap Mount
Includes
Buna-N 70 Gasket
Rating
NEMA 4X
For Use With
Indoor, Outdoor
Product Type
Indicator Light
Audible Alarm Type
Visual
Connection Type
Wire Leads
NEMA Rating
NEMA 4X
Lens Color
Red
Requires Base
Base Not Required
Control Protocol
Direct Wire
For Location
Indoor, Outdoor
Light Operating Mode
Flashing, Steady
Number of Lamps
6
Operating Temperature - Minimum
-31 Degrees F
Lifespan
148,000 hr
IO-Link Compatibility
Not IO-Link Compatible
Mounting Mechanism
1/2 in NPT
Housing Color
Gray
Vibration
No Vibration
Operating Temperature - Maximum
150 Degrees F
Includes Mounting Hardware
No Mounting Hardware
Light Source
LED
Lens Shape
Dome
Lamp Color
Red
Operating Current
0.108 A
Operating Voltage
120V AC

Description

Warning Light, Color Red, Lamp Type (6) LED, Flashes per Minute 65, Lamp Life 148,000 hr, Lens Design Snap Mount, Lens Material Polycarbonate, Housing Material ABS, Polycarbonate, Mounting Panel/Conduit, Operating Temp. -31 Degrees to 150 Degrees F, Rating NEMA 4X, Power Source Wire, Current Drawn 0.108 A AC, Width 4 7/25 in, Depth 4 7/25 in, Height 4 21/100 in, Voltage 120V AC
