  6. Warning Light, Red, LED, 12V DC, 24V AC/DC, 65, 85, 120, 460, 480, 750, 1,000 FPM, 6 1/2 in Dia.

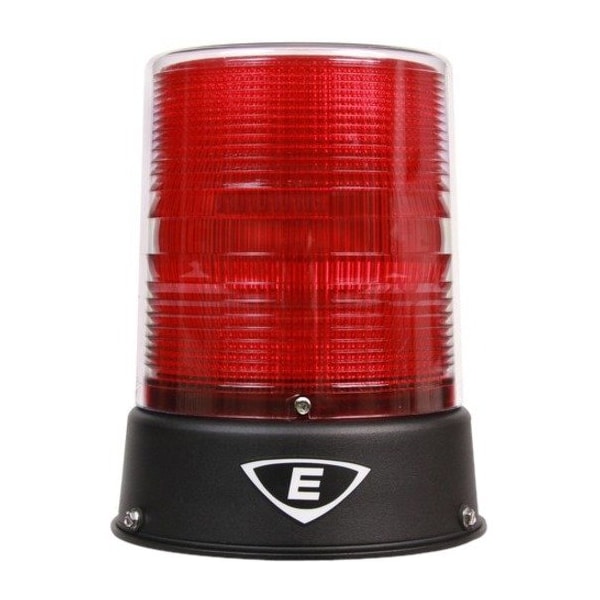

Edwards Signaling Warning Light, Red, LED, 12V DC, 24V AC/DC, 65, 85, 120, 460, 480, 750, 1,000 FPM, 6 1/2 in Dia. 57PLEDMR24ADB - main

Warning Light, Red, LED, 12V DC, 24V AC/DC, 65, 85, 120, 460, 480, 750, 1,000 FPM, 6 1/2 in Dia.

  • Mfr # 57PLEDMR24ADB

  • Zoro # G7192701

product price:  $753.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
LED
Power Source
Wire
Lamp Life
148,000 hr
Lens Material
Polycarbonate
Flashes per Minute
65, 85, 120, 460, 480, 750, 1,000
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
57PLEDMR24ADB
Zoro #
G7192701
UPC #
782640140093
Country of Origin
United States

Dimensions

Height
8 in
Overall Diameter
6 1/2 in
Diameter
6 1/2 in
Width
6.5"
Footprint Diameter
6 1/2 in
Overall Depth
8 in

Details

Item
Warning Light
Color
Red
Lamp Type
LED
Power Source
Wire
Lamp Life
148,000 hr
Lens Material
Polycarbonate
Flashes per Minute
65, 85, 120, 460, 480, 750, 1,000
Housing Material
Polycarbonate
Standards
cULus
Features
For Use in High Noise Areas Where Ear Protection is Worn or Audible Signals May Not Be Heard, Impact Resistant
Voltage
12V DC, 24V AC/DC
Lens Design
Fresnel
Operating Temp.
-31 Degrees to 150.8 Degrees F
Current Drawn
0.700A AC, 0.550A DC
Rating
IP66, NEMA 4X
Mounting
Surface or Conduit
For Use With
Indoor, Commercial, Outdoor, Industrial
Product Type
Warning Light
Audible Alarm Type
Visual
Connection Type
Wire Leads
NEMA Rating
NEMA 4X
Lens Color
Red
Lens Shape
Dome
Requires Base
Base Not Required
Lifespan
148,000 hr
Light Operating Mode
Flashing, Steady
Operating Temperature - Maximum
151 Degrees F
IP Rating
IP66
Lamp Color
Red
IO-Link Compatibility
Not IO-Link Compatible
Operating Current
0.550 A @ 24V AC/DC, 0.700 A @ 12V DC
Mounting Mechanism
3/4 in MNPT
Control Protocol
Direct Wire
For Location
Indoor, Outdoor
Housing Color
Black
Operating Temperature - Minimum
-31 Degrees F
Vibration
No Vibration
Includes Mounting Hardware
No Mounting Hardware
Mounting Style
Surface Mount
Light Source
LED
Operating Voltage
12V DC, 24V AC/DC

Description

Warning Light, Color Red, Lamp Type LED, Flashes per Minute 65, 85, 120, 460, 480, 750, 1,000, Lamp Life 148,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Polycarbonate, Mounting Surface or Conduit, Operating Temp. -31 Degrees to 150.8 Degrees F, Rating IP66, NEMA 4X, Power Source Wire, Current Drawn 0.700A AC, 0.550A DC, Height 8 in
