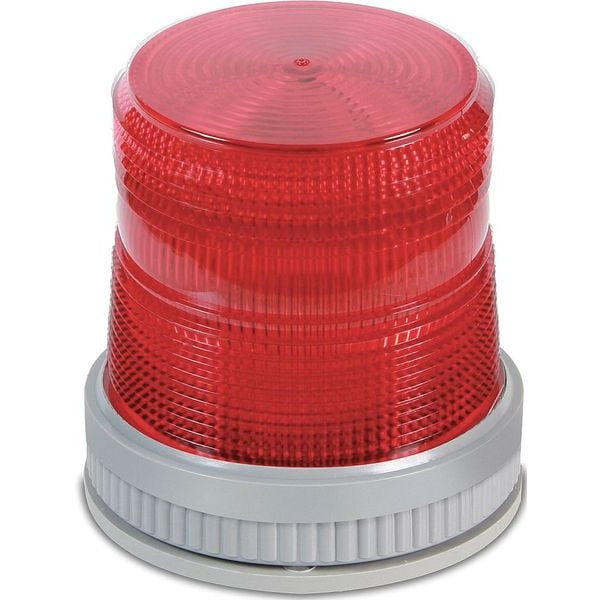

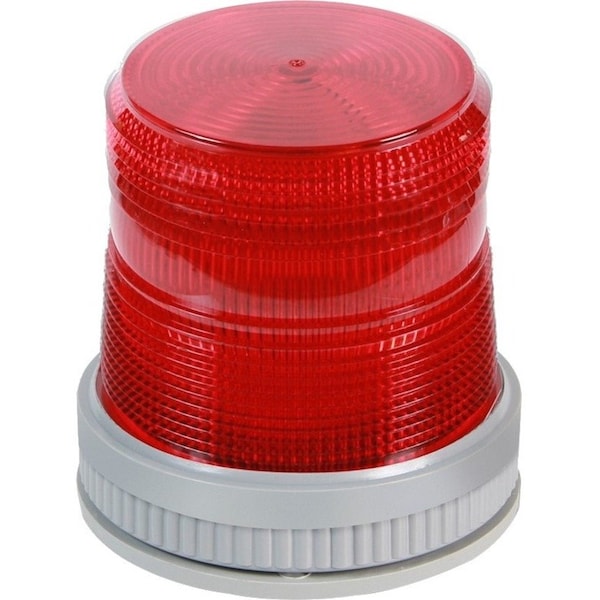

Warning Light, Red, LED, 24V DC, 65 FPM, 3 3/4 in Dia., Surface

  • Mfr # 105XBRMR24D

  • Zoro # G5621226


product price: $429.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
LED
Power Source
Wire
Lamp Life
148,000 hr
Lens Material
Polycarbonate
Flashes per Minute
65
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
105XBRMR24D
Zoro #
G5621226
UPC #
782640052266
Country of Origin
United States

Dimensions

Height
4 3/4 in
Overall Diameter
3 3/4 in
Diameter
3 3/4 in
Width
3.8"
Depth
3.8"
Overall Depth
4 3/4 in
Footprint Diameter
3 3/4 in
Lead Length
18 in

Details

Item
Warning Light
Color
Red
Lamp Type
LED
Power Source
Wire
Lamp Life
148,000 hr
Lens Material
Polycarbonate
Flashes per Minute
65
Housing Material
Glass Reinforced Thermoplastic Polyester Resin
Standards
cUL, UL
Features
Shatter Resistant
Voltage
24V DC
Current Drawn
0.215A DC
Rating
UL Class 1 Div 2, Groups A,B,C, D, Class II Div 2, Groups F, G, Class III
Mounting
Surface
For Use With
Outdoor, Marine, Industrial
Lens Design
Fresnel
Product Type
Warning Light
Material
Glass Reinforced Thermoplastic Polyester Resin, Polyethylene Terephthalate (PET)
Connection Type
Wire Leads
Audible Alarm Type
Visual
Tower Light Color
Red
NEMA Rating
NEMA 4X
Control Protocol
Direct Wire
Mounting Style
Surface Mount
Lifespan
148,000 hr
Includes Mounting Hardware
No Mounting Hardware
Operating Temperature - Maximum
212 Degrees F
Light Operating Mode
Flashing, Steady
Housing Color
Gray
Requires Base
Base Required
Operating Temperature - Minimum
-31 Degrees F
For Location
Indoor, Outdoor
Operating Current
0.215 A
Lens Color
Red
For Hazardous Location
Class I, Division 2, Class II, Division 2, Class III
Lamp Color
Red
IO-Link Compatibility
Not IO-Link Compatible
Light Source
LED
Vibration
No Vibration
Mounting Mechanism
3/4 in NPT
Operating Voltage
24V DC

Description

Warning Light, Color Red, Lamp Type LED, Flashes per Minute 65, Lamp Life 148,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Glass Reinforced Thermoplastic Polyester Resin, Mounting Surface, Rating UL Class 1 Div 2, Groups A,B,C, D, Class II Div 2, Groups F, G, Class III, Power Source Wire, Current Drawn 0.215A DC, Height 4 3/4 in
