  11. Warning Light, Red, Steady, Halogen, 120V AC, Surface Mount, 1/2 in FNPT, 3/4 in MNPT

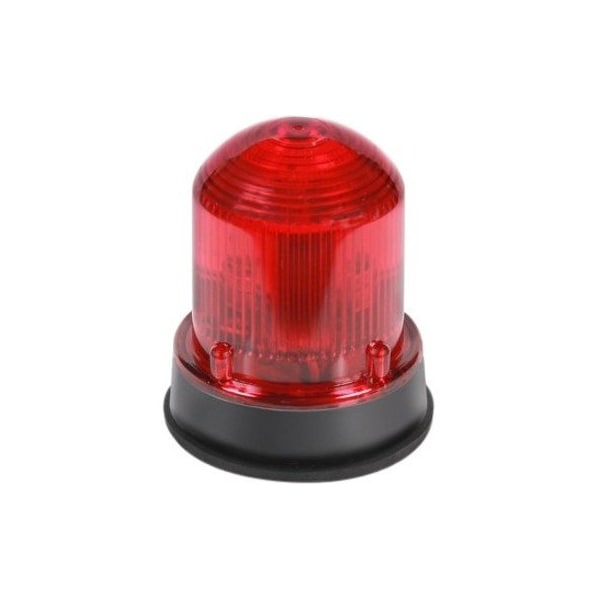

Edwards Signaling Warning Light, Red, Steady, Halogen, 120V AC, Surface Mount, 1/2 in FNPT, 3/4 in MNPT 125HALSR120A - main

Warning Light, Red, Steady, Halogen, 120V AC, Surface Mount, 1/2 in FNPT, 3/4 in MNPT

  • Mfr # 125HALSR120A

  • Zoro # G5733594

product price: $173.99
/ea
Free Shipping & Returns

Key Features

Color
Red
Lamp Type
24 Watt Halogen
Power Source
Wire
Lamp Life
25,000 hr
Lens Material
Polycarbonate
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
125HALSR120A
Zoro #
G5733594
UPC #
782640050330
Country of Origin
United States

Dimensions

Height
3 7/8 in
Overall Diameter
3 1/4 in
Diameter
3 1/4 in
Depth
3 1/4 in
Width
3 1/4 in
Overall Depth
3 1/4 in
Lead Length
18 in
Footprint Diameter
3 1/4 in

Details

Item
Warning Light
Color
Red
Lamp Type
24 Watt Halogen
Power Source
Wire
Lamp Life
25,000 hr
Lens Material
Polycarbonate
Housing Material
33% Glass Filled Nylon
Standards
cUL, UL
Features
Chemical Resistant, Corrosion Resistant, Heat Resistant
Voltage
120V AC
Current Drawn
0.2 A AC
Rating
NEMA 4X
Lens Design
Integral Screw Mount
Includes
Buna-N 70 Gasket
Mounting
Panel/Conduit
Operating Temp.
-31 Degrees to 150 Degrees F
For Use With
Outdoor
Product Type
Warning Light
Material
Glass-filled Nylon
Audible Alarm Type
Visual
Connection Type
Wire Leads
NEMA Rating
NEMA 4X
Lens Color
Red
Mounting Style
Surface Mount
Operating Current
0.200 A
Requires Base
Base Not Required
Includes Mounting Hardware
No Mounting Hardware
Light Source
Halogen
IO-Link Compatibility
Not IO-Link Compatible
Light Operating Mode
Steady
Operating Temperature - Maximum
150 Degrees F
Lifespan
25,000 hr
Lamp Color
Red
Control Protocol
Direct Wire
For Location
Indoor, Outdoor
Operating Temperature - Minimum
-31 Degrees F
Mounting Mechanism
1/2 in FNPT, 3/4 in MNPT
Housing Color
Gray
Operating Voltage
120V AC

Description

Warning Light, Color Red, Lamp Type 24 Watt Halogen, Flashes per Minute Not Applicable, Lamp Life 25,000 hr, Lens Design Integral Screw Mount, Lens Material Polycarbonate, Housing Material 33 Percent Glass Filled Nylon, Mounting Panel/Conduit, Operating Temp. -31 Degrees to 150 Degrees F, Rating NEMA 4X, Power Source Wire, Current Drawn 0.2 A AC, Width 3 1/4 in, Depth 3 1/4 in, Height 3 7/8 in, Voltage 120V AC
