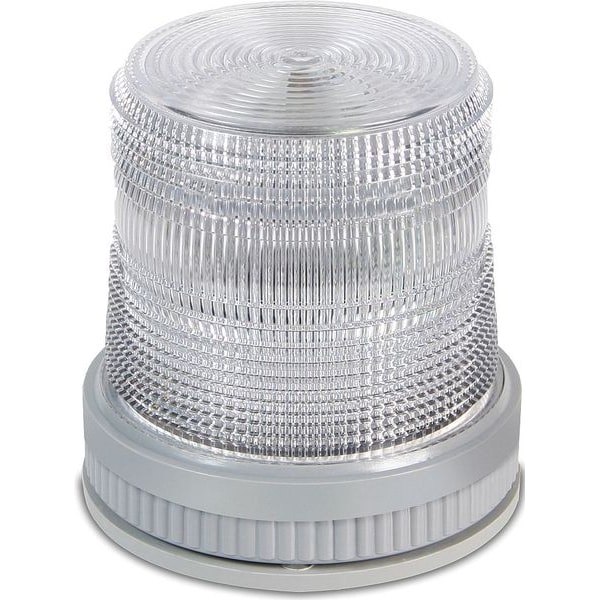

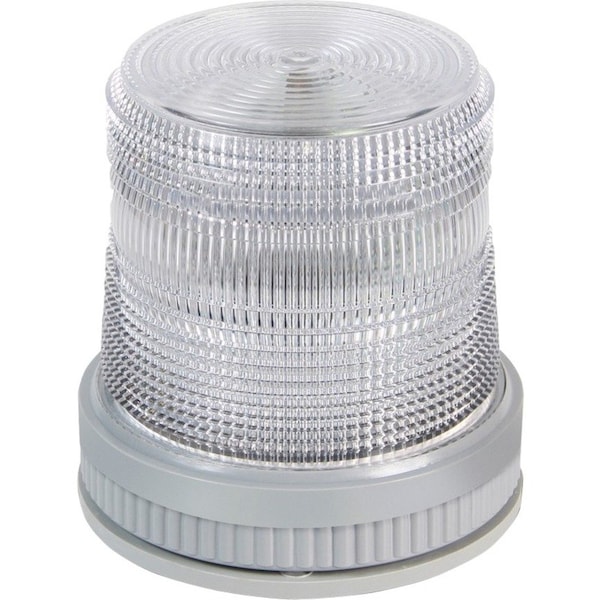

Warning Light, White, LED, 24V DC, 65 FPM, 3 3/4 in Dia., Surface

  • Mfr # 105XBRMW24D

  • Zoro # G5748163


product price: $429.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
LED
Power Source
Wire
Lamp Life
148,000 hr
Lens Material
Polycarbonate
Flashes per Minute
65
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
105XBRMW24D
Zoro #
G5748163
UPC #
782640052280
Country of Origin
United States

Dimensions

Height
4 3/4 in
Overall Diameter
3 3/4 in
Diameter
3 3/4 in
Depth
3.8"
Width
3.8"
Overall Depth
4 3/4 in
Lead Length
18 in
Footprint Diameter
3 3/4 in

Details

Item
Warning Light
Color
White
Lamp Type
LED
Power Source
Wire
Lamp Life
148,000 hr
Lens Material
Polycarbonate
Flashes per Minute
65
Housing Material
Glass Reinforced Thermoplastic Polyester Resin
Standards
cUL, UL
Features
Shatter Resistant
Voltage
24V DC
Current Drawn
0.215A DC
Mounting
Surface
Rating
UL Class 1 Div 2, Groups A,B,C, D, Class II Div 2, Groups F, G, Class III
For Use With
Marine, Industrial, Outdoor
Lens Design
Fresnel
Product Type
Warning Light
Audible Alarm Type
Visual
Tower Light Color
White
Connection Type
Wire Leads
Material
Polyethylene Terephthalate (PET), Glass Reinforced Thermoplastic Polyester Resin
NEMA Rating
NEMA 4X
Lens Color
White
Lamp Color
White
Includes Mounting Hardware
No Mounting Hardware
Housing Color
Gray
Operating Temperature - Maximum
212 Degrees F
Mounting Mechanism
3/4 in NPT
Light Operating Mode
Flashing, Steady
Vibration
No Vibration
Light Source
LED
For Hazardous Location
Class I, Division 2, Class II, Division 2, Class III
Mounting Style
Surface Mount
Requires Base
Base Required
IO-Link Compatibility
Not IO-Link Compatible
Control Protocol
Direct Wire
For Location
Indoor, Outdoor
Operating Temperature - Minimum
-31 Degrees F
Lifespan
148,000 hr
Operating Current
0.215 A
Operating Voltage
24V DC

Description

Warning Light, Color White, Lamp Type LED, Flashes per Minute 65, Lamp Life 148,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Glass Reinforced Thermoplastic Polyester Resin, Mounting Surface, Rating UL Class 1 Div 2, Groups A,B,C, D, Class II Div 2, Groups F, G, Class III, Power Source Wire, Current Drawn 0.215A DC, Height 4 3/4 in
