  5. Both Electric Tankless Water Heater, General Purpose, 80 Degrees to 140 Degrees F, 240VAC, 1 Phase

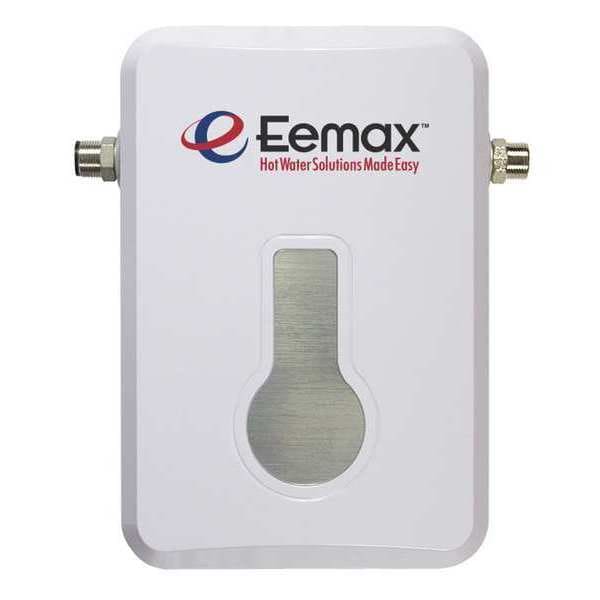

Eemax Both Electric Tankless Water Heater, General Purpose, 80 Degrees to 140 Degrees F, 240VAC, 1 Phase PR011240 - main
Shop EEMAX

Both Electric Tankless Water Heater, General Purpose, 80 Degrees to 140 Degrees F, 240VAC, 1 Phase

  • Mfr # PR011240

  • Zoro # G5233140

product price:  $402.94
/ea
Free Shipping & Returns

Key Features

Water Heater Design
Point-of-Use
Voltage - Water Heaters
240V
Watts - Water Heaters
11KW
Amps - Water Heaters
46
Phase - Water Heaters
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PR011240
Zoro #
G5233140
UPC #
091654920080
Country of Origin
China

Dimensions

Wire Size
8 AWG
Width
7-1/4"
Depth
3-3/4"
Height
11-3/4"
Overall Width
8 in
Overall Depth
3.75 in
Overall Height
11.5 in
Cold Inlet Size
1/2 in

Details

Water Heater Design
Point-of-Use
Voltage - Water Heaters
240V
Watts - Water Heaters
11KW
Amps - Water Heaters
46
Phase - Water Heaters
1
Temp. Range - Water Heaters
80 Degrees to 140 Degrees F
Min. Flow Activation
0.3 gpm
Water Heater Application
General Purpose
Commercial / Residential
Both
Item
Electric Tankless Water Heater
Standards
cETLus Listed, CSA-C22.2 No. 6, UL 499, WQA Certified
Item - Water Heaters
Electric Tankless Water Heater
Residential / Commercial
Both
Default Temperature
120 Degrees F
Voltage
240VAC
Max. Flow Rate
4.8 gpm
Temp. Rise @ 1.5 GPM
50 Degrees F
Includes
1/2 in NPT Adapters
Phase
1
Pressure Range
25 to 150 psi
Temp. Rise @ 2.5 GPM
30 Degrees F
Temp. Rise @ 6.0 GPM
Limited to Thermostatic Setting
Mounting
Vertical
Temp. Range
80 Degrees to 140 Degrees F
Water Connection
1/2" compression; (1/2" compression to 1/2" NPT adaptor included)
Amps AC
46
Temp. Rise @ 2.5 GPM - Water Heaters
30 Degrees F
Features
Protected Internal Temperature Control
Elements
Replaceable Copper Immersion with Brass Top
Element Material
Copper
Power Consumption
11,000 W
Cord Conductor Gauge
8 AWG Wire
Mounting Type
Wall Mounting
Temperature Rise @ Flow
15 Degrees F @ 5 gpm, 19 Degrees F @ 4 gpm, 25 Degrees F @ 3 gpm, 30 Degrees F @ 2.5 gpm, 38 Degrees F @ 2 gpm, 50 Degrees F @ 1.5 gpm, 75 Degrees F @ 1 gpm
Operating Voltage
240V AC
Market
Commercial, Residential
Minimum Water Pressure
25 psi
Housing Material Finish
Powder Coated
Current
46 A
Application
Dishwasher, Kitchen Sinks, Mop Sinks, Standard Hand Sink
Maximum Flow Rate
4.8 gpm
Adjustable Thermostat
Yes
Maximum Delivered Temperature
140 Degrees F
Mounting Orientation
Vertical
Minimum Flow Activation
0.3 gpm
Minimum Delivered Temperature
80 Degrees F
Environment
Indoor
Maximum Water Pressure
150 psi

Description

Electric Tankless Water Heater, Operating Voltage 240V AC, Phase Single, Cold Inlet Size 1/2 in, Maximum Flow Rate 4.8 gpm, Minimum Flow Activation 0.3 gpm, Overall Height 12.2 in, Overall Width 9.9 in, Overall Depth 3.4 in, Power Consumption 11,000 W, Maximum Delivered Temperature 140 Degrees F, Minimum Delivered Temperature 80 Degrees F, Adjustable Thermostat Yes, Current 46 A, Environment Indoor, Market Commercial, Residential
