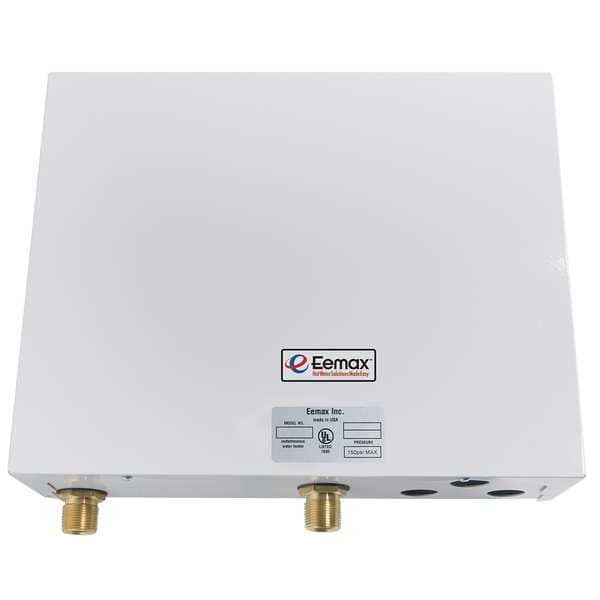

Electric Tankless Water Heater, 480V, 32000W

  • Mfr # ED032480T2T

  • Zoro # G1976021

product price:  $1,898.99
/ea
Free Shipping & Returns

Key Features

Voltage
480V
Watts
32KW
Temp. Range
100 Degrees to 140 Degrees F
Depth
4.5 in
Water Connection
1/2" compression
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ED032480T2T
Zoro #
G1976021
UPC #
091654903946
Country of Origin
United States

Dimensions

Depth
4.5 in
Width
12.25 in
Height
18.25 in
Wire Size
8 AWG
Cold Inlet Size
3/4 in
Overall Height
12.25 in
Overall Width
18.25 in
Hot Outlet Size
1/2 in
Overall Depth
4.5 in
Manufacturer Warranty Length
1 yr on Parts, 5 yr Limited on Leaks

Details

Voltage
480V
Watts
32KW
Item
Electric Tankless Water Heater
Temp. Range
100 Degrees to 140 Degrees F
Water Connection
1/2" compression
Phase - Water Heaters
3
Temp. Rise @ 2.5 GPM
87 Degrees F
Water Heater Application
General Purpose
Residential / Commercial
Commercial
Phase
3
Temp. Rise @ 4.0 GPM
58 Degrees F
Temp. Rise @ 1.5 GPM
146 Degrees F
Water Heater Design
Point-of-Use
Watts - Water Heaters
32,000 W
Min. Flow Activation
0.7 gpm
Temp. Range - Water Heaters
100 Degrees to 140 Degrees F
Mounting
Vertical
Voltage - Water Heaters
480
Elements
Triple Replaceable Nickel Chrome Cartridge Insert
Max. Flow Rate
4 gpm
Amps AC
38.5 A
Standards
ANSI Z358.1, NSF/ANSI 372, UL Listed
Features
Built in Over Temp Protection, Field Serviceable Replaceable Cartridge Element
Item - Water Heaters
Electric Tankless Water Heater
Commercial / Residential
Commercial
Pressure Range
25 to 150 psi
Amps - Water Heaters
38.5 A
Temp. Rise @ 2.5 GPM - Water Heaters
87 Degrees F
Maximum Flow Rate
4 gpm
Power Consumption
32,000 W
Mounting Orientation
Vertical
Minimum Water Pressure
25 psi
Temperature Rise @ Flow
109 Degrees F @ 2 gpm, 55 Degrees F @ 4 gpm, 73 Degrees F @ 3 gpm, 87 Degrees F @ 2.5 gpm
Minimum Delivered Temperature
140 Degrees F
Housing Material Finish
Powder Coated
Mounting Type
Wall Mounting
Water Connection Location
Bottom
Application
Booster Applications, Multiple Lavatories, Restaurants and Other Food Service Requirements
Current
38 A
Cold Inlet Type
Compression
NEMA Rating
N4, N4X
Housing Material
Steel
Operating Voltage
480V AC
Maximum Water Pressure
150 psi
Maximum Delivered Temperature
140 Degrees F
Hot Outlet Type
Compression
Market
Commercial, Industrial
Element Material
Nichrome
Cord Conductor Gauge
8 AWG Wire
Environment
Indoor
Minimum Flow Activation
0.7 gpm
Adjustable Thermostat
No
Product Type
Electric Tankless Water Heater
Location of Use
Point-of-Use

Description

Electric Tankless Water Heater, Operating Voltage 480V AC, Phase Three, Cold Inlet Size 1/2 in, Maximum Flow Rate 4 gpm, Minimum Flow Activation 0.7 gpm, Overall Height 12.25 in, Overall Width 18.25 in, Overall Depth 4.5 in, Power Consumption 32,000 W, Maximum Delivered Temperature 100 Degrees F, Minimum Delivered Temperature 140 Degrees F, Current 38 A, Environment Indoor, Market Commercial, Industrial
