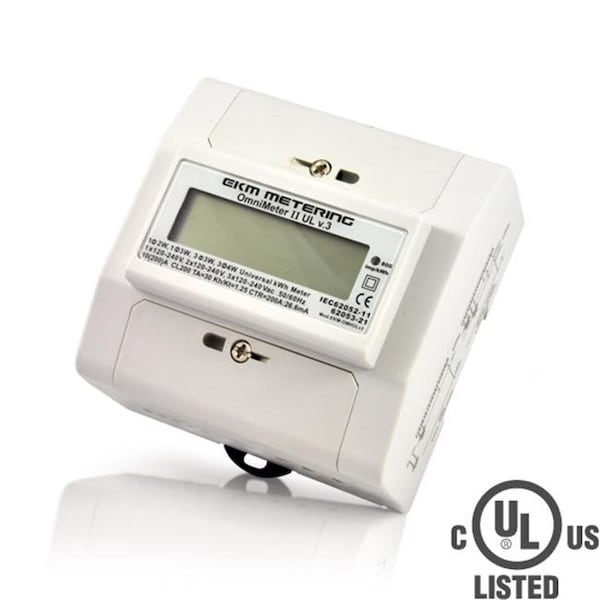

EKM Universal kWh OmniMeter II UL v.3

Single-phase 120V 2-wire or single phase 120/240V 3-wire, 120V to 240 volts, 3-phase, 3-wire 120 to 240 volts or 3-phase 4-wire, 50/60Hz , 50/60 Hz Supports CTs from 100A to 5000A. This meter will work with any system that is commonly used in the world.

This 3-phase, 4-wire meter is truly a worldwide universal meter and can be used to meter a wide variety of electrical systems. Meters systems from 120V, single-phase, 2-wire, to 240V, 3-phase, 4-wire, both 60Hz and 50Hz. There is not an electrical system, up to 240 volts, in common use that this meter will not support.

External CTs are are required for proper operation. 120 volt single phase North American or 230 volt 2-wire foreign systems require 1 CT per meter. 120/240 volt single phase requires 2 CTs per meter. 3-phase 3-wire requires 2 CTs per meter. 3-phase 4-wire requires 3 CTs per meter

• The Underwriters Laboratories approved version of our Universal EKM-Omnimeter
• This meter is both UL and cUL Listed, and has been tested to CSA standards
• 8 times faster RS-485 communication speeds for remote reading
• Uses our full range of compact external CTs
• CT ratio can be set internally to work with up to 5000 AMP CTs
• Remote reading, EKM Dash software
• Also fully supported by our revolutionary new EKM Push communication system
• This is our cloud-based, plug-and-play meter data solution
• Unrestricted data access
• Accurate to 0.5%

• Weight: 1 lbs
