  5. 6in 0-10V LED Inserts, 5-CCT, White

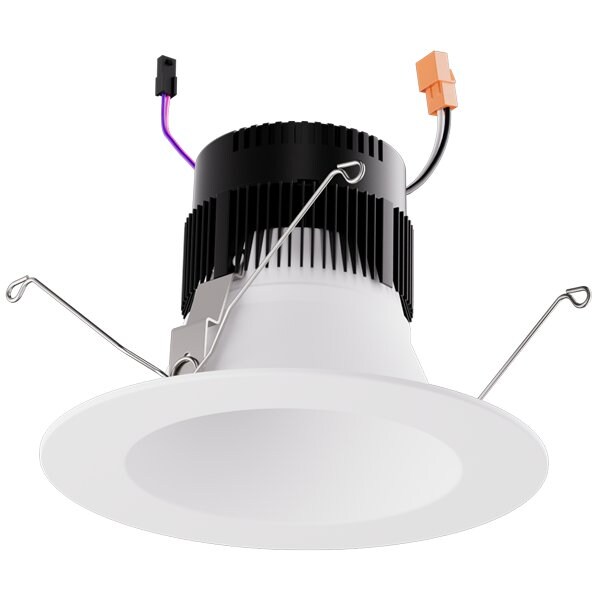

Elco Lighting 6in 0-10V LED Inserts, 5-CCT, White EL685CT5DHW - main

6in 0-10V LED Inserts, 5-CCT, White

  • Mfr # EL685CT5DHW

  • Zoro # G316154302

product price:  $76.15
/ea
Free Shipping & Returns

Key Features

Max. Wattage - Recessed Down Light
13, 19, 24
Lumens
1000/1500/2000
Color Temperature
2700K, 3000K, 3500K, 4000K, 5000K
CRI
90+
Voltage
120/277V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EL685CT5DHW
Zoro #
G316154302
UPC #
633999197194
Country of Origin
China

Details

Max. Wattage - Recessed Down Light
13, 19, 24
Lumens
1000/1500/2000
Color Temperature
2700K, 3000K, 3500K, 4000K, 5000K
CRI
90+
Voltage
120/277V
Housing Finish
Haze with White Trim
Lamp Type
LED
Wet Location
Listed

Description

This unique Ply System 0-10V dimmable LED Insert gives you the options you are looking for in one fixture. Engineered with energy-efficient LED technology and with a 120/277V 0-10V dimmable driver for a budget friendly 0-10V solution. Switch to desired Color Temperature 2700K, 3000K, 3500K, 4000K or 5000K and Lumen Output 1000 lm, 1500 lm, 2000 lm by using manual switch located on module. Designed to be used for New Construction, Remodel with ELCO Ply System Housings or as a retrofit with existing housings.


  • Manual switch to choose desired Color Temperature and Lumen Output
  • 0-10V Dimmable
  • 120/277V Driver
  • Lumens (Wattage): 1000 lm (13W), 1500 lm (19W), 2000 lm (24W)
  • Soft white lens provides smooth lumen distribution and eliminates LED pixelation
  • Deep set LED trim reduces glare while providing even illumination
  • 90+ CRI for extremely accurate color rendering
  • CA Title 24, ETL listed, ENERGY STAR, JA8-2016-E
  • Life span of 50,000 hours L70
