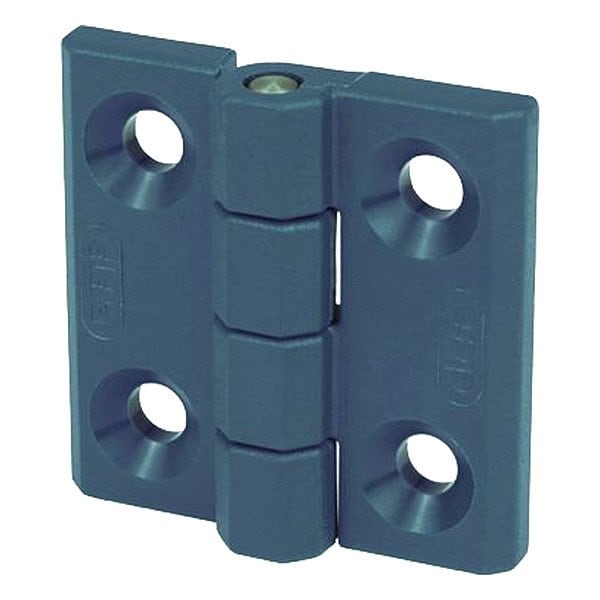

Hinge, 50 mm H, 303 Stainless Steel Pin
Mfr # 197611
Zoro # G621889166
product price:Â
$
9.79
/ea
Key Features
Door Leaf Height
50 mm
Door Leaf Width
18 mm
Pin Material
303 Stainless Steel
Pin Diameter
6 mm
Frame Leaf Thickness
6.5 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 197611
- Zoro #
- G621889166
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Door Leaf Height
- 50 mm
- Door Leaf Width
- 18 mm
- Pin Diameter
- 6 mm
- Frame Leaf Thickness
- 6.5 mm
- Overall Width
- 50 mm
- Frame Leaf Height
- 50 mm
- Frame Leaf Width
- 18 mm
- Overall Knuckle Height
- 11 1/2 mm
- Door Leaf Thickness
- 6.5 mm
Details
- Pin Material
- 303 Stainless Steel
- Item
- Hinge
- Number of Holes per Leaf
- 2
- Mounting Style
- Full Surface
- Visually Detectable
- Not Visually Detectable
- Metal Detectable
- Metal Detectable
- RAL Code Number
- 5001
- Range of Motion - Maximum
- 270 Degrees
- Material
- Fiberglass Reinforced Polyamide, Stainless Steel
- Features
- Particularly Suitable for Applications in the Food and Pharmaceutical Industries, The RAL 5001 Blue Color is Easily Visible in Case of Accidental Food Contamination. Furthermore the Material Additives are Metal Detectable at a Cubic Particle Size of 5 mm per Side
- Standards
- FDA CFR.21 and EU 10/2011, REACH, RoHS
Description
Hinge, Fiberglass Reinforced Polyamide, Stainless Steel, 50 mm Door Leaf Height, 50 mm Frame Leaf Height, 18 mm Door Leaf Width, 18 mm Frame Leaf Width, 6.5 mm Door Leaf Thickness, 6.5 mm Frame Leaf Thickness, Features Particularly Suitable for Applications in the Food and Pharmaceutical Industries, The RAL 5001 Blue Color is Easily Visible in Case of Accidental Food Contamination. Furthermore the Material Additives are Metal Detectable at a Cubic Particle Size of 5 mm per Side
