  5. Drinking Fountain with Bottle Filler On-Wall Mount, 1 Levels, Silver, Indoor

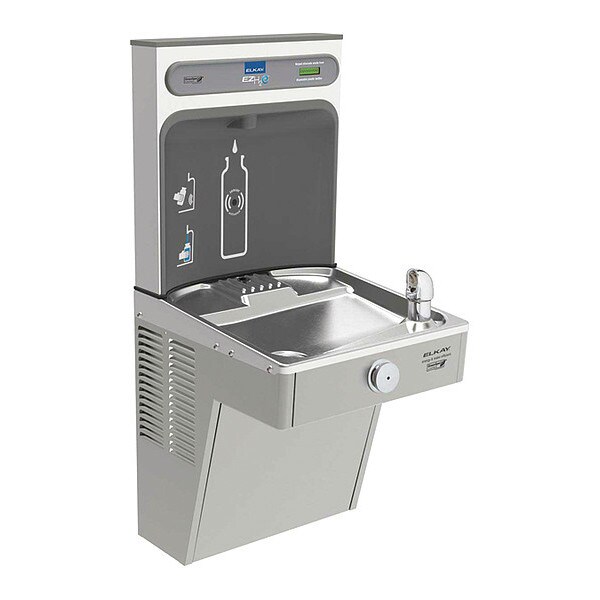

Elkay Drinking Fountain with Bottle Filler On-Wall Mount, 1 Levels, Silver, Indoor VRCGRN8WSK - main

Drinking Fountain with Bottle Filler On-Wall Mount, 1 Levels, Silver, Indoor

  • Mfr # VRCGRN8WSK

  • Zoro # G8699205

product price:  $2,269.99
/ea
Free Shipping & Returns

Key Features

Indoor / Outdoor
Indoor
Mounting Type
On-Wall
Color
Silver
Voltage
115 V AC
Drain Connection
1 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VRCGRN8WSK
Zoro #
G8699205
UPC #
094902767246
Country of Origin
United States

Dimensions

Height
39 3/4 in
Manufacturers Warranty Length
5 yr on Refrigeration System, 1 yr Electrical Components and Water System
Width
18 1/16 in
Depth
18 1/16 in
Overall Width
18 1/8 in
Overall Height
39 3/4 in
Overall Depth
18 5/8 in
Bottle Filler Width
17 7/8 in
Mounting Hole Diameter
7/16 in
Drain Outside Diameter
1 1/4 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Inlet Tube Outside Diameter
1/4 in
Bottle Filler Depth
3 5/8 in

Details

Indoor / Outdoor
Indoor
Mounting Type
On-Wall
Color
Silver
Item
Drinking Fountain with Bottle Filler
Voltage
115 V AC
Drain Connection
1 1/4 in
Number of Levels
1
Cold Water Capacity
8 gph
Includes
Bottle Filler (Sensor Activated) & High-Efficiency Water Cooler, Strainer
Operation
Push Bar Fountain, Touchless Bottle Filler
Vandal Resistant
Yes
Water Temp.
50 Degrees F
Regulator
Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Standards
ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, GreenSpec, NSF/ANSI 372, NSF/ANSI 61, UL 399
Compressor HP
1/3 hp
Dispenser Operation
Electronic Sensor (Bottle), Front Push Button (Fountain)
Dispenser Design
Wall
Compliance
Accessibility, Electrical, Lead, Mechanical, Water Qualtiy
Inlet
3/8 in OD
Full Load Amps
3.8 A
Refrigerant
134A (Libre CFC)
Refrigerated / Non-Refrigerated
Refrigerated
ADA Compliant
Yes
Material
Stainless Steel
Features
Green Ticker, Hands Free, High Efficiency, Laminar Flow, Real Drain, Vandal Resistant
Housing Material
Stainless Steel
Compressor Horsepower
1/3 hp
Antimicrobial
Yes
Product Weight
91 lb
Power Consumption
260 W
Refrigerant Type
HFC-134A
Filter Status Indicator
No
Includes Water Filter
No
Cooling Capacity
8 gph @ 50 Degrees F
Station Type
Bottle Filling Dispenser, Single Fountain
Housing Finish
Plain
Includes Pet Bowl
No
Refrigeration
Refrigerated
Includes Back Panel
No
Minimum Constant Stream Pressure
20 psi
Housing Color
Gray
Fountain Actuation
Front Push Button
Power Source
Electric Corded
Temperature Adjustment
Factory Set but Adjustable
Full Load Current
1 A
Bottle Dispenser Actuation
Sensor
Number of Mounting Holes
3
Maximum Cold Water Temperature
50 Degrees F
Number of Bubblers
1
Environment
Indoor
Vandal Resistant Features
Vandal Resistant
Bi-Level Field Adjustable
No
Minimum Supply Line Pressure
20 psi
Maximum Constant Stream Pressure
105 psi
Operating Voltage
115V AC

Description

The Elkay EZH2O Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Vandal-resistant cooler and bottle filling station in a consolidated space saving ADA compliant design. Pushbutton activation of bubbler with automatic 20-second shut-off timer on bottle filler.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
